RVV benchmark SpacemiT A100 (SpacemiT K3)

The SpacemiT-A100 is a 2-issue in-order RVA23 compatible core (actually, this isn't 100% confirmed yet, it may be missing the H extension), with a VLEN of 1024, running at 2.1GHz in the SpacemiT K3 SOC.
It is aimed at number-crunching applications and has support for the optional RVA23 extensions Zbc, Zbkc, Zcd, Zfbfmin, Zfh, Zvbc, Zvfbfwma, Zvfh, Zvkng, Zvknha, Zvksc, Zvksg, as well as a custom low-precision matrix extension.

Based on this commit.

Thanks to Bruce Hoult, who had early access to the hardware, for running the benchmarks.

Benchmarks

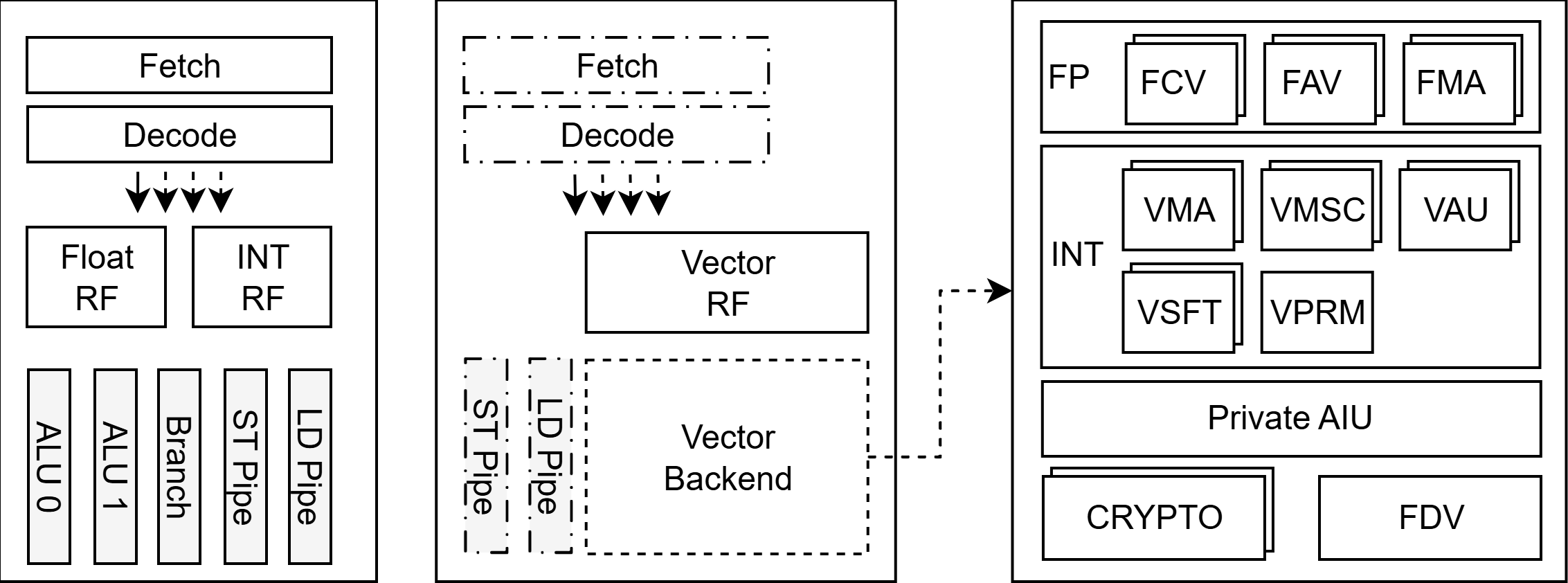

Microarchitecture

SpacemiT published a paper covering the microarchitectural design of the SpacemiT K3: k3.pdf

The A100, seems to be based on the SpacemiT X60 design, upgraded to RVA23 and with a new VLEN=1024 vector unit.

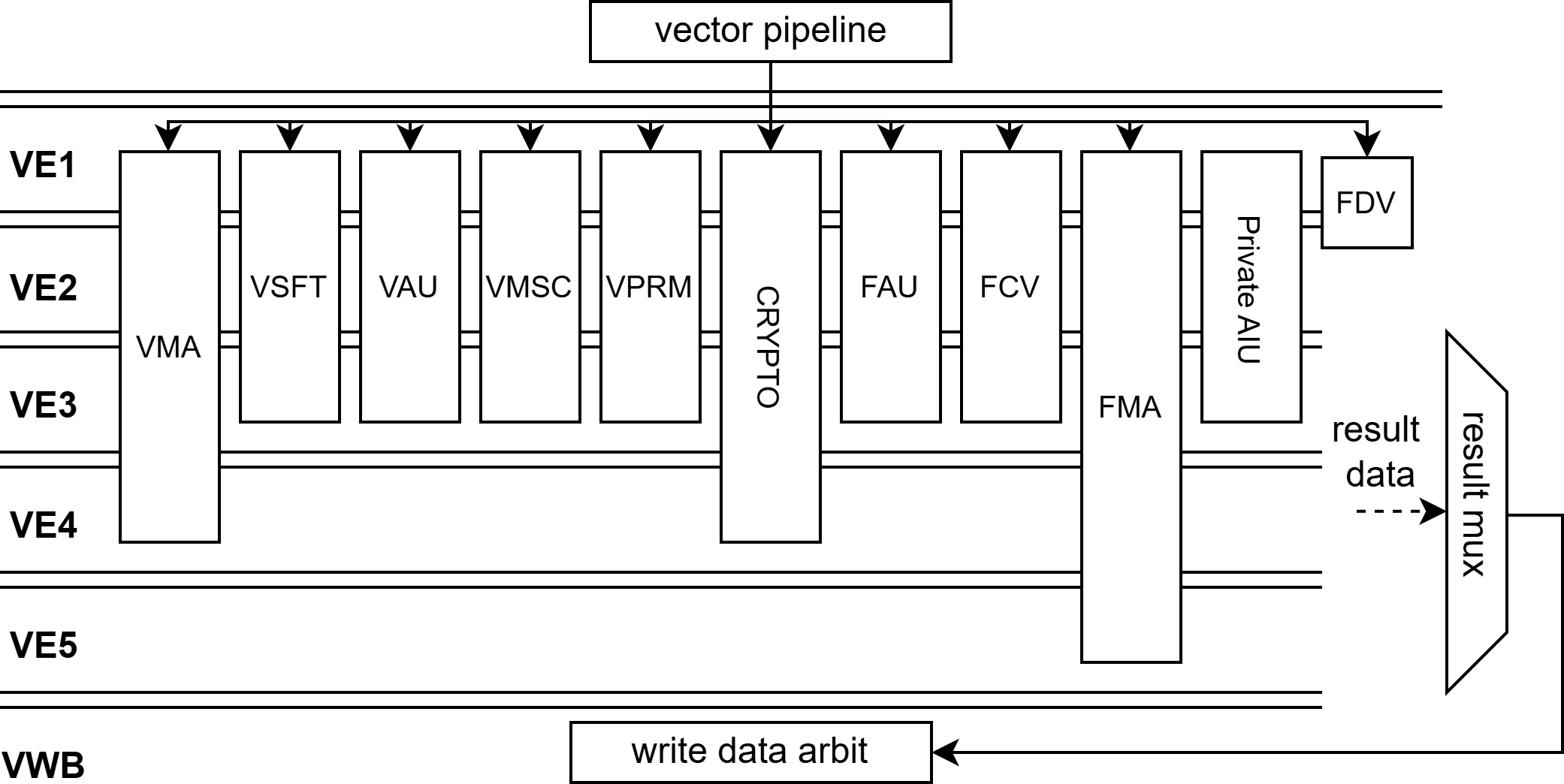

"The A100 Vector Unit is driven by two parallel vector pipelines that perform vector-instruction splitting, dependency handling, and vector register-file reads/writes, with results produced primarily in stages VE3–VE5."

It has the following structure and execution units:

Instruction timings

The following are measured cycle averages when unrolling and looping over the given instruction, which should estimate the instruction throughput. The registers involved are randomized to usual values, that is floating point values are real numbers and not NaN/Inf, and instructions like vslide* stay within the vl range. Some valid vtype-instruction combinations are missing.

Example measurement code for vadd.vx
LMUL=1LMUL=4
bench_vaddvx_m1:
m_nop
	li a0, WARMUP
1:
	vadd.vx v8,v16,t0
	vadd.vx v9,v17,t1
	vadd.vx v10,v18,t2
	vadd.vx v11,v19,t3
	vadd.vx v12,v20,t4
	vadd.vx v13,v21,t5
	vadd.vx v14,v22,t6
	vadd.vx v15,v23,t7
	addi a0, a0, -1
	bnez a0, 1b
	li a0, LOOP
	rdcycle a1
1:
.rept UNROLL
	vadd.vx v8,v16,t0
	vadd.vx v9,v17,t1
	vadd.vx v10,v18,t2
	vadd.vx v11,v19,t3
	vadd.vx v12,v20,t4
	vadd.vx v13,v21,t5
	vadd.vx v14,v22,t6
	vadd.vx v15,v23,t7
.endr
	addi a0, a0, -1
	bnez a0, 1b
	fence.i
	rdcycle a0
	sub a0, a0, a1
	ret

bench_vaddvx_m4:
	m_nop
	li a0, WARMUP
1:
	vadd.vx v8,v16,t0
	vadd.vx v12,v20,t4
	vadd.vx v8,v16,t0
	vadd.vx v12,v20,t4
	vadd.vx v8,v16,t0
	vadd.vx v12,v20,t4
	vadd.vx v8,v16,t0
	vadd.vx v12,v20,t4
	addi a0, a0, -1
	bnez a0, 1b
	li a0, LOOP
	rdcycle a1
1:
.rept UNROLL
	vadd.vx v8,v16,t0
	vadd.vx v12,v20,t4
	vadd.vx v8,v16,t0
	vadd.vx v12,v20,t4
	vadd.vx v8,v16,t0
	vadd.vx v12,v20,t4
	vadd.vx v8,v16,t0
	vadd.vx v12,v20,t4
.endr
	addi a0, a0, -1
	bnez a0, 1b
	fence.i
	rdcycle a0
	sub a0, a0, a1
	ret

Note: FP16 and some of the supported crypto instructions weren't recorded.

instructione8mf8e8mf4e8mf2e8m1e8m2e8m4e8m8e16mf8e16mf4e16mf2e16m1e16m2e16m4e16m8e32mf8e32mf4e32mf2e32m1e32m2e32m4e32m8e64mf8e64mf4e64mf2e64m1e64m2e64m4e64m8
add t0,t1,t20.620.620.620.620.530.541.000.620.620.620.530.541.000.620.620.540.541.000.620.530.541.00
mul t0,t1,t23.503.503.503.503.503.003.003.503.503.503.503.003.003.503.503.503.003.003.503.503.003.00
vadd.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vadd.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vadd.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vadd.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vadd.vi v8,v16,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vadd.vi v8,v16,13,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsub.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsub.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsub.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsub.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vrsub.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vrsub.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vrsub.vi v8,v16,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vrsub.vi v8,v16,13,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vminu.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vminu.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vminu.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vminu.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmin.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmin.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmin.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmin.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmaxu.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmaxu.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmaxu.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmaxu.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmax.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmax.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmax.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmax.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vand.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vand.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vand.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vand.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vand.vi v8,v16,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vand.vi v8,v16,13,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vor.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vor.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vor.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vor.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vor.vi v8,v16,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vor.vi v8,v16,13,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vxor.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vxor.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vxor.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vxor.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vxor.vi v8,v16,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vxor.vi v8,v16,13,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vrgather.vv v8,v16,v241.004.0016.0064.03256.281025.004100.244.0016.0064.06256.261024.964100.2216.0064.04256.261024.994100.2064.01256.301025.004100.22
vrgather.vv v8,v16,v24,v0.t1.004.0016.0064.05256.271024.984100.284.0016.0064.04256.271025.044100.2716.0064.03256.291024.994100.3864.01256.261024.984100.41
vrgather.vx v8,v16,t01.002.004.008.0016.0032.0064.012.004.008.0016.0032.0064.014.008.0016.0032.0064.018.0016.0032.0064.06
vrgather.vx v8,v16,t0,v0.t1.002.004.008.0016.0032.0064.022.004.008.0016.0032.0064.044.008.0016.0032.0064.048.0016.0032.0064.02
vrgather.vi v8,v16,31.002.004.008.0016.0032.0064.062.004.008.0016.0032.0064.034.008.0016.0032.0064.028.0016.0032.0064.00
vrgather.vi v8,v16,3,v0.t1.002.004.008.0016.0032.0064.012.004.008.0016.0032.0064.024.008.0016.0032.0064.018.0016.0032.0064.06
vslideup.vx v8,v16,t01.002.004.008.0016.0032.0064.002.004.008.0016.0032.0064.034.008.0016.0032.0064.048.0016.0032.0064.02
vslideup.vx v8,v16,t0,v0.t1.002.004.008.0016.0032.0064.052.004.008.0016.0032.0064.024.008.0016.0032.0064.018.0016.0032.0064.01
vslideup.vi v8,v16,31.002.004.008.0016.0032.0064.022.004.008.0016.0032.0064.014.008.0016.0032.0064.028.0016.0032.0064.04
vslideup.vi v8,v16,3,v0.t1.002.004.008.0016.0032.0064.012.004.008.0016.0032.0064.034.008.0016.0032.0064.068.0016.0032.0064.02
vrgatherei16.vv v8,v16,v242.008.0032.00128.14512.512050.074.0016.0064.04256.261025.014100.2716.0064.02256.251025.094100.2564.02256.261024.974100.18
vrgatherei16.vv v8,v16,v24,v0.t2.008.0032.00128.12512.502050.144.0016.0064.02256.261025.074100.4216.0064.06256.271025.014100.3064.03256.251025.014100.37
vslidedown.vx v8,v16,t01.003.005.009.0017.0033.0065.053.005.009.0017.0033.0065.055.009.0017.0033.0065.059.0017.0033.0065.05
vslidedown.vx v8,v16,t0,v0.t1.003.005.009.0017.0033.0065.053.005.009.0017.0033.0065.045.009.0017.0033.0065.049.0017.0033.0065.06
vslidedown.vi v8,v16,31.003.005.009.0017.0033.0065.043.005.009.0017.0033.0065.065.009.0017.0033.0065.059.0017.0033.0065.04
vslidedown.vi v8,v16,3,v0.t1.003.005.009.0017.0033.0065.063.005.009.0017.0033.0065.055.009.0017.0033.0065.069.0017.0033.0065.05
vredsum.vs v8,v16,v242.002.004.008.0016.0033.50131.182.004.008.0016.0033.50131.114.008.0016.0033.50131.068.0016.0033.50131.17
vredsum.vs v8,v16,v24,v0.t2.002.004.008.0016.0033.50131.092.004.008.0016.0033.50131.114.008.0016.0033.50131.198.0016.0033.50131.05
vredand.vs v8,v16,v242.002.004.008.0016.0033.00130.162.004.008.0016.0033.00130.174.008.0016.0033.00130.088.0016.0033.00130.19
vredand.vs v8,v16,v24,v0.t2.002.004.008.0016.0033.00130.082.004.008.0016.0033.00130.154.008.0016.0033.00130.158.0016.0033.00130.07
vredor.vs v8,v16,v242.002.004.008.0016.0033.00130.182.004.008.0016.0033.00130.104.008.0016.0033.00130.148.0016.0033.00130.19
vredor.vs v8,v16,v24,v0.t2.002.004.008.0016.0033.00130.062.004.008.0016.0033.00130.174.008.0016.0033.00130.098.0016.0033.00130.13
vredxor.vs v8,v16,v242.002.004.008.0016.0033.00130.192.004.008.0016.0033.00130.054.008.0016.0033.00130.198.0016.0033.00130.11
vredxor.vs v8,v16,v24,v0.t2.002.004.008.0016.0033.00130.142.004.008.0016.0033.00130.204.008.0016.0033.00130.068.0016.0033.00130.18
vredminu.vs v8,v16,v242.002.004.008.0016.0033.50131.052.004.008.0016.0033.50131.184.008.0016.0033.50131.188.0016.0033.50131.04
vredminu.vs v8,v16,v24,v0.t2.002.004.008.0016.0033.50131.192.004.008.0016.0033.50131.184.008.0016.0033.50131.058.0016.0033.50131.18
vredmin.vs v8,v16,v242.002.004.008.0016.0033.50131.182.004.008.0016.0033.50131.064.008.0016.0033.50131.208.0016.0033.50131.17
vredmin.vs v8,v16,v24,v0.t2.002.004.008.0016.0033.50131.052.004.008.0016.0033.50131.184.008.0016.0033.50131.188.0016.0033.50131.05
vredmaxu.vs v8,v16,v242.002.004.008.0016.0033.50131.192.004.008.0016.0033.50131.154.008.0016.0033.50131.058.0016.0033.50131.19
vredmaxu.vs v8,v16,v24,v0.t2.002.004.008.0016.0033.50131.162.004.008.0016.0033.50131.064.008.0016.0033.50131.208.0016.0033.50131.11
vredmax.vs v8,v16,v242.002.004.008.0016.0033.50131.082.004.008.0016.0033.50131.194.008.0016.0033.50131.108.0016.0033.50131.10
vredmax.vs v8,v16,v24,v0.t2.002.004.008.0016.0033.50131.182.004.008.0016.0033.50131.114.008.0016.0033.50131.088.0016.0033.50131.18
vaaddu.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vaaddu.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vaaddu.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vaaddu.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vaadd.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vaadd.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vaadd.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vaadd.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vasubu.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vasubu.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vasubu.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vasubu.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vasub.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vasub.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vasub.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vasub.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vslide1up.vx v8,v16,t01.002.004.008.0016.0032.0064.012.004.008.0016.0032.0064.064.008.0016.0032.0064.038.0016.0032.0064.02
vslide1up.vx v8,v16,t0,v0.t1.002.004.008.0016.0032.0064.062.004.008.0016.0032.0064.014.008.0016.0032.0064.018.0016.0032.0064.01
vslide1down.vx v8,v16,t01.003.005.009.0017.0033.0065.063.005.009.0017.0033.0065.045.009.0017.0033.0065.049.0017.0033.0065.06
vslide1down.vx v8,v16,t0,v0.t1.003.005.009.0017.0033.0065.043.005.009.0017.0033.0065.055.009.0017.0033.0065.069.0017.0033.0065.04
vadc.vvm v8,v16,v24,v01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vadc.vxm v8,v16,t0,v01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vadc.vim v8,v16,13,v01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmadc.vvm v8,v16,v24,v01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmadc.vxm v8,v16,t0,v01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmadc.vim v8,v16,13,v01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmadc.vv v8,v16,v241.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmadc.vx v8,v16,t01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmadc.vi v8,v16,131.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vsbc.vvm v8,v16,v24,v01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsbc.vxm v8,v16,t0,v01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmsbc.vvm v8,v16,v24,v01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsbc.vxm v8,v16,t0,v01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsbc.vv v8,v16,v241.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsbc.vx v8,v16,t01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmerge.vvm v8,v16,v24,v01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmerge.vxm v8,v16,t0,v01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmerge.vim v8,v16,13,v01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmv.v.v v8,v161.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmv.v.x v8,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmv.v.i v8,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vmseq.vv v8,v16,v241.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmseq.vv v8,v16,v24,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmseq.vx v8,v16,t01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmseq.vx v8,v16,t0,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmseq.vi v8,v16,131.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmseq.vi v8,v16,13,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsne.vv v8,v16,v241.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsne.vv v8,v16,v24,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsne.vx v8,v16,t01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsne.vx v8,v16,t0,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsne.vi v8,v16,131.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsne.vi v8,v16,13,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsltu.vv v8,v16,v241.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsltu.vv v8,v16,v24,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsltu.vx v8,v16,t01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsltu.vx v8,v16,t0,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmslt.vv v8,v16,v241.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmslt.vv v8,v16,v24,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmslt.vx v8,v16,t01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmslt.vx v8,v16,t0,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsleu.vv v8,v16,v241.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsleu.vv v8,v16,v24,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsleu.vx v8,v16,t01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsleu.vx v8,v16,t0,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsleu.vi v8,v16,131.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsleu.vi v8,v16,13,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsle.vv v8,v16,v241.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsle.vv v8,v16,v24,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsle.vx v8,v16,t01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsle.vx v8,v16,t0,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsle.vi v8,v16,131.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsle.vi v8,v16,13,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsgtu.vx v8,v16,t01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsgtu.vx v8,v16,t0,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsgtu.vi v8,v16,131.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsgtu.vi v8,v16,13,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsgt.vx v8,v16,t01.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsgt.vx v8,v16,t0,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsgt.vi v8,v16,131.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vmsgt.vi v8,v16,13,v0.t1.001.002.002.504.008.0016.001.002.002.504.508.0016.002.002.504.509.0018.002.504.509.0034.00
vcompress.vm v8,v16,v241.003.0010.0036.00136.14528.562082.193.0010.0036.00136.14528.542082.2010.0036.00136.13528.562082.1336.00136.15528.542082.15
vmandn.mm v8,v16,v241.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.001.002.001.001.001.001.00
vmand.mm v8,v16,v241.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.001.002.001.001.001.001.00
vmor.mm v8,v16,v241.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.001.002.001.001.001.001.00
vmxor.mm v8,v16,v241.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.001.002.001.001.001.001.00
vmorn.mm v8,v16,v241.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.001.002.001.001.001.001.00
vmnand.mm v8,v16,v241.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.001.002.001.001.001.001.00
vmnor.mm v8,v16,v241.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.001.002.001.001.001.001.00
vmxnor.mm v8,v16,v241.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.001.002.001.001.001.001.00
vsaddu.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsaddu.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsaddu.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsaddu.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsaddu.vi v8,v16,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsaddu.vi v8,v16,13,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsadd.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsadd.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsadd.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsadd.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsadd.vi v8,v16,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsadd.vi v8,v16,13,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssubu.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssubu.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssubu.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssubu.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssub.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssub.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssub.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssub.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsll.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsll.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsll.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsll.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsll.vi v8,v16,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsll.vi v8,v16,13,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsmul.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.15
vsmul.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0116.0032.0064.01128.15
vsmul.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.00128.16
vsmul.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.15
vmv1r.v v8,v162.002.002.002.002.002.004.002.002.002.002.002.004.002.002.002.002.004.002.002.002.004.00
vmv2r.v v8,v164.004.005.004.004.005.004.004.005.004.004.005.00
vmv4r.v v8,v168.008.008.008.008.008.008.008.00
vmv8r.v v8,v1616.0016.0016.0016.00
vsrl.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsrl.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsrl.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsrl.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsrl.vi v8,v16,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsrl.vi v8,v16,13,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsra.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsra.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsra.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsra.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsra.vi v8,v16,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsra.vi v8,v16,13,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssrl.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssrl.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssrl.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssrl.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssrl.vi v8,v16,131.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vssrl.vi v8,v16,13,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vdivu.vv v8,v16,v2413.1626.4953.47106.34213.48425.89851.4523.6547.0993.96188.64375.67752.6944.3688.22176.94353.38707.6482.42164.49329.25659.89
vdivu.vv v8,v16,v24,v0.t12.4624.8049.6999.98198.49397.75793.6522.4044.7488.78177.94355.81712.4842.4684.36169.29338.15678.0481.17162.43324.91650.12
vdivu.vx v8,v16,t010.3020.6741.2682.22163.56329.98640.6620.6041.0482.03163.71325.79650.1141.5183.42167.73328.30651.3780.04160.20320.33640.66
vdivu.vx v8,v16,t0,v0.t10.3120.5741.1782.14164.45327.40643.9120.4640.8981.86163.37327.39640.6741.2782.08165.20327.30648.1680.04160.20320.31640.62
vdiv.vv v8,v16,v2413.7027.5255.19110.16220.20440.39878.4925.0850.00100.09199.71398.94796.7847.4095.27189.73379.71759.4689.61179.19358.21715.32
vdiv.vv v8,v16,v24,v0.t13.1225.9252.38103.88209.28416.27833.2424.0948.1895.69191.94385.65765.8645.8892.01183.76367.49734.0688.64177.55354.91710.26
vdiv.vx v8,v16,t011.3522.7845.4990.56181.50361.38709.8922.5145.4090.65181.12359.49717.4045.4991.59183.15362.35730.5188.07176.18352.37704.73
vdiv.vx v8,v16,t0,v0.t11.2622.4945.2091.04182.37355.42705.4322.6245.1390.03179.74357.67709.9745.2190.20180.08358.80709.1988.05176.22352.39704.71
vremu.vv v8,v16,v2414.3628.8657.23114.67229.15455.92916.3525.3350.61102.08203.47406.09812.6848.2696.63193.38385.28773.5590.32181.13361.83723.54
vremu.vv v8,v16,v24,v0.t13.5626.5753.98107.96216.20428.11857.3524.5748.4297.01193.94387.76777.4346.3693.34185.52373.19739.3789.25178.48357.02713.83
vremu.vx v8,v16,t011.3222.6345.0890.45181.20358.02711.1822.4945.0990.01180.97360.32720.6745.8491.66182.93364.84741.3688.05176.18352.41704.74
vremu.vx v8,v16,t0,v0.t11.2822.5345.0590.06180.66361.89714.1522.3744.8089.58180.26359.69712.2445.1390.32180.67359.25716.1488.06176.22352.38704.70
vrem.vv v8,v16,v2414.6829.5158.86118.70235.59473.57943.8326.8154.06107.77216.63432.57865.1151.30102.81205.49410.89823.5597.49195.15389.36779.89
vrem.vv v8,v16,v24,v0.t14.1127.9456.50112.07223.79448.45894.3326.0952.24103.68207.94415.20829.7849.8999.88200.16398.60799.3596.90193.41387.42774.36
vrem.vx v8,v16,t012.4124.7149.3199.50197.02394.20777.2924.5649.3398.33195.85388.23778.3549.7099.67199.09399.30799.1496.05192.19384.48768.75
vrem.vx v8,v16,t0,v0.t12.3324.6849.3098.16197.66393.09773.1724.4749.1597.41196.52386.98773.8149.1698.22197.19390.61781.9496.05192.20384.48768.79
vmulhu.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.04128.13
vmulhu.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.04128.13
vmulhu.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.04128.13
vmulhu.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.05128.13
vmul.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.14
vmul.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.16
vmul.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.15
vmul.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.14
vmulhsu.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.14
vmulhsu.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.03128.15
vmulhsu.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.00128.14
vmulhsu.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.00128.15
vmulh.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.14
vmulh.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.15
vmulh.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.15
vmulh.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.16
vmadd.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.14
vmadd.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.14
vmadd.vx v8,t0,v161.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.14
vmadd.vx v8,t0,v16,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.13
vmacc.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.15
vmacc.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.15
vmacc.vx v8,t0,v161.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.15
vmacc.vx v8,t0,v16,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.002.004.008.0016.0032.0016.0032.0064.01128.15
vnsrl.wv v8,v16,v241.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnsrl.wv v8,v16,v24,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnsrl.wx v8,v16,t01.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnsrl.wx v8,v16,t0,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnsrl.wi v8,v16,131.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnsrl.wi v8,v16,13,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnsra.wv v8,v16,v241.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnsra.wv v8,v16,v24,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnsra.wx v8,v16,t01.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnsra.wx v8,v16,t0,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnsra.wi v8,v16,131.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnsra.wi v8,v16,13,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclipu.wv v8,v16,v241.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclipu.wv v8,v16,v24,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclipu.wx v8,v16,t01.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclipu.wx v8,v16,t0,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclipu.wi v8,v16,131.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclipu.wi v8,v16,13,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclip.wv v8,v16,v241.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclip.wv v8,v16,v24,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclip.wx v8,v16,t01.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclip.wx v8,v16,t0,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclip.wi v8,v16,131.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnclip.wi v8,v16,13,v0.t1.002.002.004.008.0016.002.002.004.008.0016.002.004.008.0016.00
vnmsub.vv v8,v16,v241.001.001.002.004.008.001.001.002.004.008.002.004.008.0016.00
vnmsub.vv v8,v16,v24,v0.t1.001.001.002.004.008.001.001.002.004.008.002.004.008.0016.00
vnmsub.vx v8,t0,v161.001.001.002.004.008.001.001.002.004.008.002.004.008.0016.00
vnmsub.vx v8,t0,v16,v0.t1.001.001.002.004.008.001.001.002.004.008.002.004.008.0016.00
vnmsac.vv v8,v16,v241.001.001.002.004.008.001.001.002.004.008.002.004.008.0016.00
vnmsac.vv v8,v16,v24,v0.t1.001.001.002.004.008.001.001.002.004.008.002.004.008.0016.00
vnmsac.vx v8,t0,v161.001.001.002.004.008.001.001.002.004.008.002.004.008.0016.00
vnmsac.vx v8,t0,v16,v0.t1.001.001.002.004.008.001.001.002.004.008.002.004.008.0016.00
vwaddu.vv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwaddu.vv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwaddu.vx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwaddu.vx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwadd.vv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwadd.vv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwadd.vx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwadd.vx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsubu.vv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsubu.vv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsubu.vx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsubu.vx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsub.vv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsub.vv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsub.vx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsub.vx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwaddu.wv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwaddu.wv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwaddu.wx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwaddu.wx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwadd.wv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwadd.wv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwadd.wx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwadd.wx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsubu.wv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsubu.wv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsubu.wx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsubu.wx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsub.wv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsub.wv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsub.wx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsub.wx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwmulu.vv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmulu.vv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmulu.vx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmulu.vx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmulsu.vv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmulsu.vv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmulsu.vx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmulsu.vx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmul.vv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmul.vv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmul.vx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmul.vx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmaccu.vv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmaccu.vv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.01
vwmaccu.vx v8,t0,v161.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmaccu.vx v8,t0,v16,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmacc.vv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmacc.vv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmacc.vx v8,t0,v161.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmacc.vx v8,t0,v16,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmaccsu.vv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmaccsu.vv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmaccsu.vx v8,t0,v161.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmaccsu.vx v8,t0,v16,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmaccus.vx v8,t0,v161.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vwmaccus.vx v8,t0,v16,v0.t1.001.002.004.008.0016.001.002.004.008.0016.004.008.0016.0032.00
vfadd.vv v8,v16,v241.002.004.008.0016.004.008.0016.0032.00
vfadd.vv v8,v16,v24,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfadd.vf v8,v16,ft01.002.004.008.0016.004.008.0016.0032.00
vfadd.vf v8,v16,ft0,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfsub.vv v8,v16,v241.002.004.008.0016.004.008.0016.0032.00
vfsub.vv v8,v16,v24,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfsub.vf v8,v16,ft01.002.004.008.0016.004.008.0016.0032.00
vfsub.vf v8,v16,ft0,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmin.vv v8,v16,v241.002.004.008.0016.004.008.0016.0032.00
vfmin.vv v8,v16,v24,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmin.vf v8,v16,ft01.002.004.008.0016.004.008.0016.0032.00
vfmin.vf v8,v16,ft0,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmax.vv v8,v16,v241.002.004.008.0016.004.008.0016.0032.00
vfmax.vv v8,v16,v24,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmax.vf v8,v16,ft01.002.004.008.0016.004.008.0016.0032.00
vfmax.vf v8,v16,ft0,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfsgnj.vv v8,v16,v241.002.004.008.0016.002.004.008.0016.00
vfsgnj.vv v8,v16,v24,v0.t1.002.004.008.0016.002.004.008.0016.00
vfsgnj.vf v8,v16,ft01.002.004.008.0016.002.004.008.0016.00
vfsgnj.vf v8,v16,ft0,v0.t1.002.004.008.0016.002.004.008.0016.00
vfsgnjn.vv v8,v16,v241.002.004.008.0016.002.004.008.0016.00
vfsgnjn.vv v8,v16,v24,v0.t1.002.004.008.0016.002.004.008.0016.00
vfsgnjn.vf v8,v16,ft01.002.004.008.0016.002.004.008.0016.00
vfsgnjn.vf v8,v16,ft0,v0.t1.002.004.008.0016.002.004.008.0016.00
vfsgnjx.vv v8,v16,v241.002.004.008.0016.002.004.008.0016.00
vfsgnjx.vv v8,v16,v24,v0.t1.002.004.008.0016.002.004.008.0016.00
vfsgnjx.vf v8,v16,ft01.002.004.008.0016.002.004.008.0016.00
vfsgnjx.vf v8,v16,ft0,v0.t1.002.004.008.0016.002.004.008.0016.00
vfslide1up.vf v8,v16,ft04.008.0016.0032.0064.058.0016.0032.0064.01
vfslide1up.vf v8,v16,ft0,v0.t4.008.0016.0032.0064.028.0016.0032.0064.00
vfslide1down.vf v8,v16,ft05.009.0017.0033.0065.049.0017.0033.0065.05
vfslide1down.vf v8,v16,ft0,v0.t5.009.0017.0033.0065.049.0017.0033.0065.05
vfredusum.vs v8,v16,v248.0014.0026.0051.01198.1112.5024.5049.53195.22
vfredusum.vs v8,v16,v24,v0.t8.0014.0026.0051.02198.2612.5024.5049.52195.27
vfredosum.vs v8,v16,v2423.0047.0095.09192.22768.7923.0047.0196.54385.46
vfredosum.vs v8,v16,v24,v0.t23.0047.0095.09192.20768.8023.0047.0096.63385.44
vfredmin.vs v8,v16,v248.0014.0026.0051.02198.2612.5024.5049.51195.26
vfredmin.vs v8,v16,v24,v0.t8.0014.0026.0051.00198.1912.5024.5049.50195.04
vfredmax.vs v8,v16,v248.0014.0026.0051.01198.2912.5024.5049.50195.27
vfredmax.vs v8,v16,v24,v0.t8.0014.0026.0051.00198.2312.5024.5049.50195.00
vfmerge.vfm v8,v16,ft0,v01.002.004.008.0016.002.004.008.0016.00
vfmv.v.f v8,ft01.002.004.008.0016.002.004.008.0016.00
vmfeq.vv v8,v16,v242.002.504.509.0019.004.508.5017.0066.00
vmfeq.vv v8,v16,v24,v0.t2.002.504.509.0019.004.508.5017.0066.00
vmfeq.vf v8,v16,ft02.002.504.509.0019.004.508.5017.0066.06
vmfeq.vf v8,v16,ft0,v0.t2.002.504.509.0019.004.508.5017.0066.04
vmfle.vv v8,v16,v242.002.504.509.0019.004.508.5017.0066.01
vmfle.vv v8,v16,v24,v0.t2.002.504.509.0019.004.508.5017.0066.00
vmfle.vf v8,v16,ft02.002.504.509.0019.004.508.5017.0066.05
vmfle.vf v8,v16,ft0,v0.t2.002.504.509.0019.004.508.5017.0066.04
vmflt.vv v8,v16,v242.002.504.509.0019.004.508.5017.0066.02
vmflt.vv v8,v16,v24,v0.t2.002.504.509.0019.004.508.5017.0066.00
vmflt.vf v8,v16,ft02.002.504.509.0019.004.508.5017.0066.06
vmflt.vf v8,v16,ft0,v0.t2.002.504.509.0019.004.508.5017.0066.04
vmfne.vv v8,v16,v242.002.504.509.0019.004.508.5017.0066.00
vmfne.vv v8,v16,v24,v0.t2.002.504.509.0019.004.508.5017.0066.06
vmfne.vf v8,v16,ft02.002.504.509.0019.004.508.5017.0066.06
vmfne.vf v8,v16,ft0,v0.t2.002.504.509.0019.004.508.5017.0066.05
vmfgt.vv v8,v16,v242.002.504.509.0019.004.508.5017.0066.00
vmfgt.vv v8,v16,v24,v0.t2.002.504.509.0019.004.508.5017.0066.04
vmfgt.vf v8,v16,ft02.002.504.509.0019.004.508.5017.0066.05
vmfgt.vf v8,v16,ft0,v0.t2.002.504.509.0019.004.508.5017.0066.04
vmfge.vv v8,v16,v242.002.504.509.0019.004.508.5017.0066.00
vmfge.vv v8,v16,v24,v0.t2.002.504.509.0019.004.508.5017.0066.02
vmfge.vf v8,v16,ft02.002.504.509.0019.004.508.5017.0066.06
vmfge.vf v8,v16,ft0,v0.t2.002.504.509.0019.004.508.5017.0066.01
vfdiv.vv v8,v16,v2476.78153.61307.32615.521229.25160.24320.45640.751281.26
vfdiv.vv v8,v16,v24,v0.t67.44136.79268.46549.181086.64128.68258.08510.971017.41
vfdiv.vf v8,v16,ft053.46106.98224.77450.03898.4451.0796.16192.27384.41
vfdiv.vf v8,v16,ft0,v0.t49.26100.95206.59416.82841.9551.0696.08192.42384.49
vfrdiv.vf v8,v16,ft053.58108.91224.93449.62930.6851.0496.07192.25384.49
vfrdiv.vf v8,v16,ft0,v0.t50.90101.81207.91415.76696.4551.0196.07192.25384.48
vfmul.vv v8,v16,v241.002.004.008.0016.005.0010.1020.4338.32
vfmul.vv v8,v16,v24,v0.t1.002.004.008.0016.005.0710.2320.4637.84
vfmul.vf v8,v16,ft01.002.004.008.0016.004.008.0016.0232.03
vfmul.vf v8,v16,ft0,v0.t1.002.004.008.0016.004.018.0216.0032.02
vfrsub.vf v8,v16,ft01.002.004.008.0016.004.008.0016.0032.00
vfrsub.vf v8,v16,ft0,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmadd.vv v8,v16,v241.002.004.008.0016.004.008.0016.0032.00
vfmadd.vv v8,v16,v24,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmadd.vf v8,ft0,v161.002.004.008.0016.004.008.0016.0032.00
vfmadd.vf v8,ft0,v16,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmsub.vv v8,v16,v241.002.004.008.0016.004.008.0016.0032.00
vfmsub.vv v8,v16,v24,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmsub.vf v8,ft0,v161.002.004.008.0016.004.008.0016.0032.00
vfmsub.vf v8,ft0,v16,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmacc.vv v8,v16,v241.002.004.008.0016.004.008.0016.0032.00
vfmacc.vv v8,v16,v24,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmacc.vf v8,ft0,v161.002.004.008.0016.004.008.0016.0032.00
vfmacc.vf v8,ft0,v16,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmsac.vv v8,v16,v241.002.004.008.0016.004.008.0016.0032.00
vfmsac.vv v8,v16,v24,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfmsac.vf v8,ft0,v161.002.004.008.0016.004.008.0016.0032.00
vfmsac.vf v8,ft0,v16,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfnmsac.vv v8,v16,v241.002.004.008.00
vfnmsac.vv v8,v16,v24,v0.t1.002.004.008.00
vfnmsac.vf v8,ft0,v161.002.004.008.00
vfnmsac.vf v8,ft0,v16,v0.t1.002.004.008.00
vfnmacc.vv v8,v16,v241.002.004.008.00
vfnmacc.vv v8,v16,v24,v0.t1.002.004.008.00
vfnmacc.vf v8,ft0,v161.002.004.008.00
vfnmacc.vf v8,ft0,v16,v0.t1.002.004.008.00
vfnmsub.vv v8,v16,v241.002.004.008.00
vfnmsub.vv v8,v16,v24,v0.t1.002.004.008.00
vfnmsub.vf v8,ft0,v161.002.004.008.00
vfnmsub.vf v8,ft0,v16,v0.t1.002.004.008.00
vfnmadd.vv v8,v16,v241.002.004.008.00
vfnmadd.vv v8,v16,v24,v0.t1.002.004.008.00
vfnmadd.vf v8,ft0,v161.002.004.008.00
vfnmadd.vf v8,ft0,v16,v0.t1.002.004.008.00
vwredsumu.vs v8,v16,v242.002.004.008.0016.0033.50131.182.004.008.0016.0033.50131.154.008.0016.0033.50131.04
vwredsumu.vs v8,v16,v24,v0.t2.002.004.008.0016.0033.50131.182.004.008.0016.0033.50131.114.008.0016.0033.50131.08
vwredsum.vs v8,v16,v242.002.004.008.0016.0033.50131.192.004.008.0016.0033.50131.134.008.0016.0033.50131.05
vwredsum.vs v8,v16,v24,v0.t2.002.004.008.0016.0033.50131.182.004.008.0016.0033.50131.154.008.0016.0033.50131.05
vfwadd.vv v8,v16,v244.008.0016.0032.00
vfwadd.vv v8,v16,v24,v0.t4.008.0016.0032.00
vfwadd.vf v8,v16,ft04.008.0016.0032.00
vfwadd.vf v8,v16,ft0,v0.t4.008.0016.0032.00
vfwsub.vv v8,v16,v244.008.0016.0032.00
vfwsub.vv v8,v16,v24,v0.t4.008.0016.0032.00
vfwsub.vf v8,v16,ft04.008.0016.0032.00
vfwsub.vf v8,v16,ft0,v0.t4.008.0016.0032.00
vfwadd.wv v8,v16,v248.0016.0032.0064.01
vfwadd.wv v8,v16,v24,v0.t8.0016.0032.0064.02
vfwadd.wf v8,v16,ft08.0016.0032.0064.07
vfwadd.wf v8,v16,ft0,v0.t8.0016.0032.0064.04
vfwsub.wv v8,v16,v248.0016.0032.0064.01
vfwsub.wv v8,v16,v24,v0.t8.0016.0032.0064.01
vfwsub.wf v8,v16,ft08.0016.0032.0064.00
vfwsub.wf v8,v16,ft0,v0.t8.0016.0032.0064.01
vfwmul.vv v8,v16,v244.248.5216.7632.79
vfwmul.vv v8,v16,v24,v0.t4.218.4117.2132.98
vfwmul.vf v8,v16,ft04.118.1216.5332.53
vfwmul.vf v8,v16,ft0,v0.t4.138.1416.5532.31
vfwmacc.vv v8,v16,v244.008.0016.0032.00
vfwmacc.vv v8,v16,v24,v0.t4.008.0016.0032.00
vfwmacc.vf v8,ft0,v164.008.0016.0032.00
vfwmacc.vf v8,ft0,v16,v0.t4.008.0016.0032.00
vfwnmacc.vv v8,v16,v244.008.0016.0032.00
vfwnmacc.vv v8,v16,v24,v0.t4.008.0016.0032.00
vfwnmacc.vf v8,ft0,v164.008.0016.0032.00
vfwnmacc.vf v8,ft0,v16,v0.t4.008.0016.0032.00
vfwmsac.vv v8,v16,v244.008.0016.0032.00
vfwmsac.vv v8,v16,v24,v0.t4.008.0016.0032.00
vfwmsac.vf v8,ft0,v164.008.0016.0032.00
vfwmsac.vf v8,ft0,v16,v0.t4.008.0016.0032.00
vfwnmsac.vv v8,v16,v244.008.0016.0032.00
vfwnmsac.vv v8,v16,v24,v0.t4.008.0016.0032.00
vfwnmsac.vf v8,ft0,v164.008.0016.0032.00
vfwnmsac.vf v8,ft0,v16,v0.t4.008.0016.0032.00
vfwredosum.vs v8,v16,v2431.0063.03127.12256.821026.01
vfwredosum.vs v8,v16,v24,v0.t31.0063.02127.12256.781026.03
vfwredusum.vs v8,v16,v2431.0063.02127.14256.781026.00
vfwredusum.vs v8,v16,v24,v0.t31.0063.03127.13256.781026.05
vmv.s.x v8,t01.001.001.001.001.002.004.001.001.001.001.002.004.001.001.001.002.004.001.001.002.004.00
vmv.x.s t0,v81.001.001.001.001.503.006.001.001.001.001.503.006.001.001.001.503.006.001.001.503.006.00
vcpop.m t0,v81.501.501.501.502.004.008.001.501.501.501.502.004.001.501.501.501.502.001.501.501.501.50
vcpop.m t0,v8,v0.t1.501.501.501.502.004.008.001.501.501.501.502.004.001.501.501.501.502.001.501.501.501.50
vfirst.m t0,v81.501.501.501.502.004.008.001.501.501.501.502.004.001.501.501.501.502.001.501.501.501.50
vfirst.m t0,v8,v0.t1.501.501.501.502.004.008.001.501.501.501.502.004.001.501.501.501.502.001.501.501.501.50
vzext.vf2 v8,v161.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vzext.vf2 v8,v16,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsext.vf2 v8,v161.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vsext.vf2 v8,v16,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vzext.vf4 v8,v161.002.004.008.0016.002.004.008.0016.00
vzext.vf4 v8,v16,v0.t1.002.004.008.0016.002.004.008.0016.00
vsext.vf4 v8,v161.002.004.008.0016.002.004.008.0016.00
vsext.vf4 v8,v16,v0.t1.002.004.008.0016.002.004.008.0016.00
vzext.vf8 v8,v162.004.008.0016.00
vzext.vf8 v8,v16,v0.t2.004.008.0016.00
vsext.vf8 v8,v162.004.008.0016.00
vsext.vf8 v8,v16,v0.t2.004.008.0016.00
vfmv.f.s ft0,v81.001.001.002.004.001.001.002.004.00
vfmv.s.f v8,ft01.001.001.002.004.001.001.002.004.00
vfcvt.xu.f.v v8,v161.002.004.008.0016.004.008.0016.0032.00
vfcvt.xu.f.v v8,v16,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfcvt.x.f.v v8,v161.002.004.008.0016.004.008.0016.0032.00
vfcvt.x.f.v v8,v16,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfcvt.f.xu.v v8,v161.002.004.008.0016.004.008.0016.0032.00
vfcvt.f.xu.v v8,v16,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfcvt.f.x.v v8,v161.002.004.008.0016.004.008.0016.0032.00
vfcvt.f.x.v v8,v16,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfcvt.rtz.x.f.v v8,v161.002.004.008.0016.004.008.0016.0032.00
vfcvt.rtz.x.f.v v8,v16,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfcvt.rtz.xu.f.v v8,v161.002.004.008.0016.004.008.0016.0032.00
vfcvt.rtz.xu.f.v v8,v16,v0.t1.002.004.008.0016.004.008.0016.0032.00
vfwcvt.xu.f.v v8,v164.008.0016.0032.00
vfwcvt.xu.f.v v8,v16,v0.t4.008.0016.0032.00
vfwcvt.x.f.v v8,v164.008.0016.0032.00
vfwcvt.x.f.v v8,v16,v0.t4.008.0016.0032.00
vfwcvt.f.xu.v v8,v164.008.0016.0032.00
vfwcvt.f.xu.v v8,v16,v0.t4.008.0016.0032.00
vfwcvt.f.x.v v8,v164.008.0016.0032.00
vfwcvt.f.x.v v8,v16,v0.t4.008.0016.0032.00
vfwcvt.f.f.v v8,v164.008.0016.0032.00
vfwcvt.f.f.v v8,v16,v0.t4.008.0016.0032.00
vfwcvt.rtz.xu.f.v v8,v164.008.0016.0032.00
vfwcvt.rtz.xu.f.v v8,v16,v0.t4.008.0016.0032.00
vfwcvt.rtz.x.f.v v8,v164.008.0016.0032.00
vfwcvt.rtz.x.f.v v8,v16,v0.t4.008.0016.0032.00
vfncvt.xu.f.w v8,v164.008.0016.0032.00
vfncvt.xu.f.w v8,v16,v0.t4.008.0016.0032.00
vfncvt.x.f.w v8,v164.008.0016.0032.00
vfncvt.x.f.w v8,v16,v0.t4.008.0016.0032.00
vfncvt.f.xu.w v8,v164.008.0016.0032.00
vfncvt.f.xu.w v8,v16,v0.t4.008.0016.0032.00
vfncvt.f.x.w v8,v164.008.0016.0032.00
vfncvt.f.x.w v8,v16,v0.t4.008.0016.0032.00
vfncvt.f.f.w v8,v164.008.0016.0032.00
vfncvt.f.f.w v8,v16,v0.t4.008.0016.0032.00
vfncvt.rtz.x.f.w v8,v164.008.0016.0032.00
vfncvt.rtz.x.f.w v8,v16,v0.t4.008.0016.0032.00
vfncvt.rtz.xu.f.w v8,v164.008.0016.0032.00
vfncvt.rtz.xu.f.w v8,v16,v0.t4.008.0016.0032.01
vfncvt.rod.f.f.w v8,v164.008.0016.0032.00
vfncvt.rod.f.f.w v8,v16,v0.t4.008.0016.0032.00
vfsqrt.v v8,v1667.21135.35270.73543.121080.69133.54267.95529.141060.33
vfsqrt.v v8,v16,v0.t50.78106.59208.07426.98839.1897.89191.54378.47761.74
vfrsqrt7.v v8,v164.008.0016.0032.0064.048.0016.0032.0064.04
vfrsqrt7.v v8,v16,v0.t4.008.0016.0032.0064.028.0016.0032.0064.01
vfrec7.v v8,v164.008.0016.0032.0064.028.0016.0032.0064.04
vfrec7.v v8,v16,v0.t4.008.0016.0032.0064.048.0016.0032.0064.01
vfclass.v v8,v164.008.0016.0032.0064.018.0016.0032.0064.00
vfclass.v v8,v16,v0.t4.008.0016.0032.0064.048.0016.0032.0064.06
vmsbf.m v8,v161.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.002.004.001.001.002.004.00
vmsbf.m v8,v16,v0.t1.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.002.004.001.001.002.004.00
vmsof.m v8,v161.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.002.004.001.001.002.004.00
vmsof.m v8,v16,v0.t1.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.002.004.001.001.002.004.00
vmsif.m v8,v161.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.002.004.001.001.002.004.00
vmsif.m v8,v16,v0.t1.001.001.001.002.004.008.001.001.001.001.002.004.001.001.001.002.004.001.001.002.004.00
viota.m v8,v161.002.004.008.0016.0032.0064.052.004.008.0016.0032.0064.054.008.0016.0032.0064.018.0016.0032.0064.01
viota.m v8,v16,v0.t1.002.004.008.0016.0032.0064.032.004.008.0016.0032.0064.014.008.0016.0032.0064.008.0016.0032.0064.03
vid.v v81.002.004.008.0016.0032.0064.012.004.008.0016.0032.0064.014.008.0016.0032.0064.058.0016.0032.0064.03
vid.v v8,v0.t1.002.004.008.0016.0032.0064.032.004.008.0016.0032.0064.054.008.0016.0032.0064.018.0016.0032.0064.01
vle8.v v8,(t0)1.001.001.602.504.358.3916.561.001.001.452.904.418.711.001.001.352.404.911.001.001.803.41
vle8.v v8,(t0),v0.t2.802.773.114.709.9518.7739.852.822.823.004.879.7519.592.752.753.214.769.062.772.773.657.50
vle16.v v8,(t0)1.001.402.361.001.552.504.308.5116.321.001.352.494.668.601.001.202.254.80
vle16.v v8,(t0),v0.t2.803.134.812.803.074.807.7515.7631.832.773.174.757.8115.912.753.715.008.53
vle32.v v8,(t0)1.602.601.402.701.652.654.488.5116.491.552.564.658.50
vle32.v v8,(t0),v0.t3.255.143.304.903.054.728.0113.5128.053.504.608.1814.45
vle64.v v8,(t0)2.252.452.452.364.358.4316.42
vle64.v v8,(t0),v0.t4.524.704.874.907.6714.1825.77
vse8.v v8,(t0)1.501.602.042.634.808.4116.611.501.502.002.714.708.561.501.501.792.705.211.501.501.662.66
vse8.v v8,(t0),v0.t2.762.823.504.559.1119.3336.662.802.823.404.909.9719.772.772.773.404.709.222.802.803.154.70
vse16.v v8,(t0)1.501.952.801.501.912.784.918.5016.701.501.872.804.8011.051.541.912.685.20
vse16.v v8,(t0),v0.t2.853.255.252.823.474.708.2015.7132.172.783.424.957.7015.822.823.304.708.15
vse32.v v8,(t0)1.952.662.162.801.762.665.009.1016.461.792.765.208.40
vse32.v v8,(t0),v0.t3.175.303.204.853.174.507.6513.7629.813.255.058.2014.36
vse64.v v8,(t0)2.862.582.532.484.808.3119.70
vse64.v v8,(t0),v0.t4.864.454.464.458.0113.6025.62
vle8ff.v v8,(t0)8.008.008.669.5013.4617.4625.608.008.018.429.5513.4117.548.008.008.609.5613.378.008.008.709.30
vle8ff.v v8,(t0),v0.t11.5511.6112.8413.9318.1128.4645.7111.6611.6012.1113.6618.5127.4011.5611.5112.3013.7618.4611.5611.6012.1213.51
vle16ff.v v8,(t0)8.008.569.508.008.759.6613.5117.7225.968.008.559.5013.5517.478.008.319.4113.60
vle16ff.v v8,(t0),v0.t11.5512.3113.9111.6512.5613.6217.4926.0440.3711.5112.2614.1617.4124.0711.6712.5513.9617.41
vle32ff.v v8,(t0)8.559.758.559.368.509.5613.7117.9125.678.579.5713.5117.52
vle32ff.v v8,(t0),v0.t12.3113.6012.5614.0111.9113.7517.1723.5038.3012.3613.6617.1123.01
vle64ff.v v8,(t0)9.359.369.509.3513.3617.1325.60
vle64ff.v v8,(t0),v0.t13.7813.5813.4013.4816.8622.5934.56
vlm.v v8,(t0)1.001.001.001.001.001.753.601.001.001.001.001.503.501.001.001.041.503.051.001.001.503.05
vsm.v v8,(t0)1.501.501.501.501.501.792.631.501.501.501.501.501.951.501.501.501.501.501.501.501.501.50
vlse8.v v8,(t2),t317.0034.0068.01136.15272.28544.561089.2717.0034.0068.03136.14272.27544.5317.0034.0068.02136.15272.2517.0034.0068.03136.14
vlse8.v v8,(t2),t3,v0.t25.2649.6198.56198.14395.22789.501574.9325.3250.3098.56199.03392.69788.2824.6149.0397.73197.08393.2725.0150.0199.63197.72
vlse8.v v8,(t2),x017.0034.0068.03136.14272.27544.581089.2217.0034.0068.02136.15272.25544.5817.0034.0068.03136.14272.2617.0034.0068.03136.19
vlse8.v v8,(t2),x0,v0.t25.0349.3499.60196.57393.63789.001575.3424.8149.5798.49195.76395.29787.2125.0749.6898.99198.71394.5325.1249.8498.67198.35
vlse8.v v8,(t2),t1/*-1*/17.0034.0068.03136.13272.26544.541089.2617.0034.0068.03136.15272.27544.5617.0034.0068.03136.15272.2717.0034.0068.01136.15
vlse8.v v8,(t2),t1/*-1*/,v0.t24.8249.8599.31196.41394.81788.381575.2925.1149.4399.14198.05395.37788.2624.9048.7198.02196.91397.1725.0650.2198.61199.60
vlse16.v v8,(t2),t318.0036.0072.0418.0036.0072.02144.15288.33576.6418.0036.0072.03144.13288.2818.0036.0072.05144.14
vlse16.v v8,(t2),t3,v0.t25.5649.8998.4925.2650.0899.08198.12396.45793.6624.9650.6699.81198.63396.9724.7950.0499.09197.16
vlse16.v v8,(t2),x018.0036.0072.0318.0036.0072.04144.17288.32576.6118.0036.0072.05144.17288.2918.0036.0072.03144.15
vlse16.v v8,(t2),x0,v0.t25.1650.5199.6524.7949.93100.41197.69395.52792.7624.6750.3698.69198.32394.8325.6050.6199.87197.64
vlse16.v v8,(t2),t1/*-1*/18.0036.0072.0618.0036.0072.05144.18288.28576.6418.0036.0072.03144.16288.3018.0036.0072.02144.16
vlse16.v v8,(t2),t1/*-1*/,v0.t24.7450.4199.2925.0649.85100.78197.23395.68792.3025.3650.2198.57197.30395.7825.2849.6398.04198.15
vlse32.v v8,(t2),t320.0040.0120.0040.0020.0040.0080.04160.19320.3120.0040.0080.06160.19
vlse32.v v8,(t2),t3,v0.t25.4750.3925.5650.5125.6749.51100.09198.52398.7324.9850.08100.26198.47
vlse32.v v8,(t2),x020.0040.0020.0040.0020.0040.0080.06160.18320.3220.0040.0080.04160.18
vlse32.v v8,(t2),x0,v0.t25.0450.1425.3250.1824.7450.24100.55201.42400.8325.2250.21100.23199.96
vlse32.v v8,(t2),t1/*-1*/20.0040.0020.0040.0020.0040.0080.06160.18320.3220.0040.0080.04160.20
vlse32.v v8,(t2),t1/*-1*/,v0.t25.6249.8225.4850.6525.5650.26100.59199.33398.5325.2350.57100.54199.71
vlse64.v v8,(t2),t324.0024.0024.0024.0048.0096.07192.19
vlse64.v v8,(t2),t3,v0.t25.8426.0225.7726.2052.01102.95204.84
vlse64.v v8,(t2),x024.0024.0024.0024.0048.0296.06192.26
vlse64.v v8,(t2),x0,v0.t26.0225.8125.9125.9351.23102.77205.20
vlse64.v v8,(t2),t1/*-1*/24.0024.0024.0024.0048.0096.05192.30
vlse64.v v8,(t2),t1/*-1*/,v0.t25.9425.8225.8225.7551.24102.72204.03
vsse8.v v8,(t2),t316.0232.1464.04128.25256.36512.621025.2916.0032.1464.03128.14256.30512.8016.0032.2064.06128.29256.2616.0032.1264.11128.19
vsse8.v v8,(t2),t3,v0.t24.4549.4499.21194.80392.95785.961569.8924.8648.8999.51196.45393.62785.1725.3049.7598.14197.15392.2525.3249.4598.53196.85
vsse8.v v8,(t2),x016.0032.0064.01128.14256.25512.501025.1416.0032.0064.02128.12256.25512.5216.0032.0064.01128.14256.2416.0032.0064.01128.14
vsse8.v v8,(t2),x0,v0.t25.2449.5999.38196.08393.53789.141574.8325.1549.3798.25195.45393.45784.7625.0649.1998.14196.68394.2325.1749.8997.32196.76
vsse8.v v8,(t2),t1/*-1*/16.0032.0564.01128.14256.26512.531025.1916.0032.0764.02128.12256.25512.5216.0032.0264.02128.13256.2516.0032.0964.03128.14
vsse8.v v8,(t2),t1/*-1*/,v0.t25.1950.5199.58197.17391.56789.681570.1125.0148.9198.22196.49392.88783.8924.7149.7598.78196.46394.1225.0749.6997.47195.66
vsse16.v v8,(t2),t316.0032.0064.0716.0032.0564.06128.12256.26512.5716.0032.0164.07128.15256.2616.0032.0064.06128.15
vsse16.v v8,(t2),t3,v0.t24.6849.0699.0225.0749.0498.30195.69390.80782.3625.1349.5298.32197.04393.6724.8249.2299.22195.89
vsse16.v v8,(t2),x016.0032.0064.0116.0032.0064.02128.13256.24512.5416.0032.0064.01128.14256.2516.0032.0064.01128.14
vsse16.v v8,(t2),x0,v0.t25.0149.3697.5924.5849.2598.73195.69394.20784.8725.4248.8799.88196.00393.3825.2749.8799.11196.85
vsse16.v v8,(t2),t1/*-1*/16.0032.0964.9216.0032.0164.77129.07257.13513.3616.0032.1064.64128.91256.8916.0032.1064.79128.86
vsse16.v v8,(t2),t1/*-1*/,v0.t24.6649.4298.8124.8049.4198.35194.74393.06783.6225.0649.5898.80197.51392.9625.1349.7698.29197.26
vsse32.v v8,(t2),t316.3133.0016.4533.0016.4532.9266.00132.13264.2416.4933.0066.00132.11
vsse32.v v8,(t2),t3,v0.t24.7849.2325.3950.0625.2050.35100.19196.42392.5124.8349.9399.49195.60
vsse32.v v8,(t2),x016.0032.0016.0032.0016.0032.0064.01128.14256.2516.0032.0064.01128.13
vsse32.v v8,(t2),x0,v0.t24.8750.0925.2149.5324.9248.8097.42196.13392.4925.1649.4998.15195.90
vsse32.v v8,(t2),t1/*-1*/16.0032.0016.0632.0316.0032.0064.05128.28256.2816.0032.0064.07128.17
vsse32.v v8,(t2),t1/*-1*/,v0.t25.1549.7224.6249.2825.3149.6399.26197.10392.0725.1649.6397.09197.97
vsse64.v v8,(t2),t316.0016.0016.0016.0032.0064.01128.15
vsse64.v v8,(t2),t3,v0.t25.0925.0825.0225.3750.0298.92195.57
vsse64.v v8,(t2),x016.0016.0016.0016.0032.0064.06128.13
vsse64.v v8,(t2),x0,v0.t25.0024.9324.7124.7750.1998.98195.11
vsse64.v v8,(t2),t1/*-1*/16.8517.0017.0016.9532.9665.00129.14
vsse64.v v8,(t2),t1/*-1*/,v0.t24.9625.1824.8524.8849.7098.25195.76
vlseg2e8.v v8,(t0)7.3712.5224.7148.3096.82192.867.2812.3024.4048.4696.737.4412.6124.4148.407.4212.4124.42
vlseg2e8.v v8,(t0),v0.t10.6015.3227.6151.61105.54210.7810.6315.6827.9651.87105.1010.8215.6627.6751.9910.7215.9227.61
vlseg2e16.v v8,(t0)12.3024.4548.8112.6624.7148.1996.35192.6112.4124.4148.5896.5912.5024.5148.56
vlseg2e16.v v8,(t0),v0.t15.4627.6151.5915.6827.5251.7299.68200.3515.8127.8251.6799.7915.6627.5151.50
vlseg2e32.v v8,(t0)24.4548.5124.3948.3524.5548.5896.62192.6624.6148.8396.48
vlseg2e32.v v8,(t0),v0.t27.4251.3927.0751.3127.2551.6099.85195.6127.1851.4898.90
vlseg2e64.v v8,(t0)48.3148.2648.3248.3296.34192.65
vlseg2e64.v v8,(t0),v0.t51.6551.5751.7351.8299.61195.80
vsseg2e8.v v8,(t0)3.006.4112.0024.0048.0196.073.006.2012.0024.0048.023.006.3512.0024.033.006.2612.00
vsseg2e8.v v8,(t0),v0.t5.388.3215.4128.3155.50112.645.408.4615.0228.2656.055.208.4115.0127.625.168.5514.77
vsseg2e16.v v8,(t0)6.3012.0024.006.2112.0024.0248.0196.126.2612.0024.0048.036.3112.0024.00
vsseg2e16.v v8,(t0),v0.t8.5515.0128.428.3515.0628.7254.18109.758.4515.2628.1354.798.5614.8028.30
vsseg2e32.v v8,(t0)12.0024.0212.0024.1212.0024.0148.0696.1312.0024.0448.06
vsseg2e32.v v8,(t0),v0.t14.7027.9214.9128.4714.5528.1354.39106.9815.2728.1655.03
vsseg2e64.v v8,(t0)24.2124.1024.0924.0548.2696.34
vsseg2e64.v v8,(t0),v0.t28.2128.3328.0328.4454.77106.57
vlseg3e8.v v8,(t0)10.7520.7640.6580.72160.5810.3020.6140.3380.5810.3520.5640.5510.6020.52
vlseg3e8.v v8,(t0),v0.t12.7623.0742.5883.18166.3813.4222.8343.0882.7712.7122.9943.0512.9223.07
vlseg3e16.v v8,(t0)20.7140.6580.7220.4640.3080.55160.6820.4140.5080.3920.4140.38
vlseg3e16.v v8,(t0),v0.t22.6442.3982.6622.4542.8782.90162.8222.7642.7782.6122.6042.80
vlseg3e32.v v8,(t0)40.5780.5140.3880.4040.5680.35160.3640.3480.56
vlseg3e32.v v8,(t0),v0.t42.7682.4443.0182.7242.3482.78163.1643.1482.86
vlseg3e64.v v8,(t0)72.5572.4072.4072.62144.32
vlseg3e64.v v8,(t0),v0.t75.3775.4675.7575.55147.61
vsseg3e8.v v8,(t0)6.0012.0024.0048.0096.046.0012.0024.0048.026.0012.0024.006.0012.00
vsseg3e8.v v8,(t0),v0.t7.0113.4025.8951.76102.457.0613.2626.1651.946.9013.3526.017.0613.40
vsseg3e16.v v8,(t0)12.0024.0048.0212.0024.0048.0296.0712.0024.0048.0012.0024.00
vsseg3e16.v v8,(t0),v0.t13.1625.8451.4612.9125.8951.04101.9412.7125.9251.1213.2225.72
vsseg3e32.v v8,(t0)24.0248.0524.0148.0324.0148.0096.1524.0048.04
vsseg3e32.v v8,(t0),v0.t26.0551.4725.9452.0626.1551.20102.4626.1751.76
vsseg3e64.v v8,(t0)40.0040.0040.0040.0080.04
vsseg3e64.v v8,(t0),v0.t45.6945.9245.9845.9989.63
vlseg4e8.v v8,(t0)12.5724.3848.5596.59192.8012.6524.5148.6896.6212.5024.4148.4712.6224.47
vlseg4e8.v v8,(t0),v0.t14.7527.0352.61102.62204.4914.5226.8752.41102.4514.7126.6052.3614.5226.98
vlseg4e16.v v8,(t0)24.3648.4396.6324.6248.5096.71192.8724.7248.5296.6224.2048.67
vlseg4e16.v v8,(t0),v0.t27.1452.66103.3627.3152.72103.15203.9927.6852.89103.0026.9352.51
vlseg4e32.v v8,(t0)48.3496.4148.8396.3048.6796.46192.8648.5796.48
vlseg4e32.v v8,(t0),v0.t52.60102.4052.12101.8352.25102.09202.1852.11101.96
vlseg4e64.v v8,(t0)96.6096.4096.2696.60192.65
vlseg4e64.v v8,(t0),v0.t103.09102.55102.51102.62203.38
vsseg4e8.v v8,(t0)6.3612.0024.0048.0696.136.4112.0024.0048.046.2112.0024.016.3512.00
vsseg4e8.v v8,(t0),v0.t8.2115.3228.9857.56113.848.0115.3229.3957.788.4115.6629.088.5515.30
vsseg4e16.v v8,(t0)12.0024.0248.0412.0024.0748.0396.1412.0024.0248.2612.0024.00
vsseg4e16.v v8,(t0),v0.t15.4030.0858.2815.4229.5758.24114.6415.3629.2758.2315.1730.17
vsseg4e32.v v8,(t0)24.0148.0024.0248.0524.0148.0696.1424.0248.03
vsseg4e32.v v8,(t0),v0.t29.2358.2529.5558.4829.2958.12115.1429.3258.30
vsseg4e64.v v8,(t0)48.2448.3848.3148.3796.67
vsseg4e64.v v8,(t0),v0.t58.2758.2658.1157.71115.79
vlseg5e8.v v8,(t0)84.09164.20324.37644.7484.09164.18324.3584.04164.1984.04
vlseg5e8.v v8,(t0),v0.t122.70247.50489.02977.41123.14245.77494.47124.48242.83125.41
vlseg5e16.v v8,(t0)84.05164.18324.3184.09164.19324.3184.02164.1884.03
vlseg5e16.v v8,(t0),v0.t122.40242.33490.37122.98244.24488.99122.07248.17124.20
vlseg5e32.v v8,(t0)84.05164.2084.02164.1984.03164.1984.04
vlseg5e32.v v8,(t0),v0.t122.05245.27122.84245.75124.07240.96124.57
vlseg5e64.v v8,(t0)84.0984.0984.0984.08
vlseg5e64.v v8,(t0),v0.t122.63124.43122.24123.62
vsseg5e8.v v8,(t0)84.12164.19324.32644.7384.10164.20324.3084.09164.1784.06
vsseg5e8.v v8,(t0),v0.t122.16244.72490.77979.71123.98245.49487.92122.47240.31123.92
vsseg5e16.v v8,(t0)84.04164.59324.7284.09164.49324.7184.04164.5084.03
vsseg5e16.v v8,(t0),v0.t124.79243.76498.23124.80248.71489.06124.08249.46123.61
vsseg5e32.v v8,(t0)84.10164.1884.16164.2684.34164.2484.20
vsseg5e32.v v8,(t0),v0.t125.38243.29122.55246.95122.34242.81123.26
vsseg5e64.v v8,(t0)84.4184.3684.3284.29
vsseg5e64.v v8,(t0),v0.t121.74124.35124.21123.19
vlseg6e8.v v8,(t0)101.11197.25389.35773.81101.09197.24389.50101.08197.28101.10
vlseg6e8.v v8,(t0),v0.t147.64288.56590.931175.67144.36296.81582.92147.13290.38145.78
vlseg6e16.v v8,(t0)101.07197.00389.28101.09197.27389.36101.09197.25101.08
vlseg6e16.v v8,(t0),v0.t148.20290.70587.58150.63296.19594.45147.89291.61147.64
vlseg6e32.v v8,(t0)101.09197.25101.08197.10101.07197.25101.10
vlseg6e32.v v8,(t0),v0.t148.39293.12148.35291.96148.90295.99147.11
vlseg6e64.v v8,(t0)101.07101.10101.08101.10
vlseg6e64.v v8,(t0),v0.t150.44149.12148.07148.92
vsseg6e8.v v8,(t0)101.11197.00389.38773.96101.12197.44390.01101.20197.39101.15
vsseg6e8.v v8,(t0),v0.t149.46290.04586.891175.45146.81289.37595.38151.50291.23148.62
vsseg6e16.v v8,(t0)101.88197.68390.09101.54197.89390.07101.50197.79101.93
vsseg6e16.v v8,(t0),v0.t149.32294.08595.36144.76292.95593.09148.34297.91148.69
vsseg6e32.v v8,(t0)101.09197.26101.11197.27101.12197.08101.10
vsseg6e32.v v8,(t0),v0.t148.34296.14146.36297.33148.09289.48150.00
vsseg6e64.v v8,(t0)101.78101.83101.49101.82
vsseg6e64.v v8,(t0),v0.t148.17147.04145.94146.73
vlseg7e8.v v8,(t0)118.09230.25454.49902.96118.10230.27454.50118.08230.26118.08
vlseg7e8.v v8,(t0),v0.t175.68345.99681.281375.57172.91350.52693.91173.69344.45172.19
vlseg7e16.v v8,(t0)118.15230.24454.49118.09230.24454.52118.07230.25118.08
vlseg7e16.v v8,(t0),v0.t169.37344.19690.09172.54345.60678.89175.65344.23172.25
vlseg7e32.v v8,(t0)118.09230.25118.13230.26118.15230.28118.16
vlseg7e32.v v8,(t0),v0.t173.30343.77172.55344.35168.95346.28172.16
vlseg7e64.v v8,(t0)118.07118.12118.16118.08
vlseg7e64.v v8,(t0),v0.t172.55172.85170.41170.85
vsseg7e8.v v8,(t0)118.21230.25454.50903.06118.14230.31454.50118.11230.25118.09
vsseg7e8.v v8,(t0),v0.t170.01342.21688.361372.33170.17341.52688.68172.13343.24170.68
vsseg7e16.v v8,(t0)118.09230.27454.54118.20230.30454.64118.16230.25118.17
vsseg7e16.v v8,(t0),v0.t171.30347.08689.82169.04338.68688.62172.40340.70173.42
vsseg7e32.v v8,(t0)118.13230.26118.31230.29118.18230.26118.17
vsseg7e32.v v8,(t0),v0.t173.08345.37169.82346.36174.79344.13173.08
vsseg7e64.v v8,(t0)118.45118.25118.23118.29
vsseg7e64.v v8,(t0),v0.t173.31171.50170.26174.63
vlseg8e8.v v8,(t0)135.15263.26519.511032.12135.14263.26519.52135.13263.27135.15
vlseg8e8.v v8,(t0),v0.t197.93393.67778.541569.04196.62394.97791.84196.31394.61198.77
vlseg8e16.v v8,(t0)135.13263.28519.53135.14263.25519.52135.15263.29135.15
vlseg8e16.v v8,(t0),v0.t197.07391.37789.17196.11391.45781.39195.96395.33193.61
vlseg8e32.v v8,(t0)135.13263.26135.13263.28135.14263.28135.14
vlseg8e32.v v8,(t0),v0.t198.03393.70197.06394.45199.51392.69192.79
vlseg8e64.v v8,(t0)135.15135.15135.14135.13
vlseg8e64.v v8,(t0),v0.t194.79195.49196.71194.82
vsseg8e8.v v8,(t0)135.13263.26519.551032.10135.13263.25519.53135.13263.28135.13
vsseg8e8.v v8,(t0),v0.t196.81393.76791.551563.80194.71393.91783.12197.16387.83199.08
vsseg8e16.v v8,(t0)135.19263.29519.69135.16263.25519.57135.17263.35135.14
vsseg8e16.v v8,(t0),v0.t198.53394.84783.50197.47396.33788.18196.02398.44195.89
vsseg8e32.v v8,(t0)135.14263.26135.18263.26135.15263.26135.14
vsseg8e32.v v8,(t0),v0.t198.40390.91200.53392.48198.06395.06196.91
vsseg8e64.v v8,(t0)135.15135.15135.15135.14
vsseg8e64.v v8,(t0),v0.t198.85199.20196.45198.82
vlseg2e8ff.v v8,(t0)12.4618.6630.6054.40102.71198.9912.5118.6530.4854.48102.4412.6618.5030.7154.4512.4718.5530.71
vlseg2e8ff.v v8,(t0),v0.t15.7021.6133.5957.81111.79215.8415.5722.0733.7157.95110.1515.9021.7333.6357.7716.1221.7333.78
vlseg2e16ff.v v8,(t0)18.4730.4854.6918.4130.5454.72102.49198.8318.3630.4254.53102.4518.3630.5754.74
vlseg2e16ff.v v8,(t0),v0.t21.6833.8857.6421.5233.3857.99105.80206.2621.5133.8057.74105.9821.4133.4957.43
vlseg2e32ff.v v8,(t0)30.7354.4930.6654.5130.3754.48102.62198.7230.7954.31102.60
vlseg2e32ff.v v8,(t0),v0.t33.3257.2633.4057.3633.7057.74105.47201.7633.2957.45105.42
vlseg2e64ff.v v8,(t0)54.3454.1554.3854.38102.59198.94
vlseg2e64ff.v v8,(t0),v0.t57.5958.1357.5857.76105.66201.58
vlseg3e8ff.v v8,(t0)16.4626.5646.5186.58166.5816.4026.4346.3486.6716.4226.4146.3516.6626.50
vlseg3e8ff.v v8,(t0),v0.t18.7728.8048.8289.23172.7319.1829.0349.0389.0919.1329.0648.7518.9028.61
vlseg3e16ff.v v8,(t0)26.5746.3086.3226.3846.5586.31166.9726.6146.4486.5226.3946.57
vlseg3e16ff.v v8,(t0),v0.t28.7848.2688.6928.4548.5188.66168.5928.4248.6588.9028.3948.62
vlseg3e32ff.v v8,(t0)46.5586.2046.3586.3946.3086.71166.3046.4286.25
vlseg3e32ff.v v8,(t0),v0.t48.8088.8148.7588.6049.0288.85168.9248.8989.06
vlseg3e64ff.v v8,(t0)78.3178.5178.4378.20150.73
vlseg3e64ff.v v8,(t0),v0.t81.8781.4781.4081.56153.82
vlseg4e8ff.v v8,(t0)18.4630.3654.31102.91198.8118.4730.5254.64102.3818.4730.4154.6918.3230.51
vlseg4e8ff.v v8,(t0),v0.t21.0333.1757.88108.74211.0220.8733.0058.62108.4520.7633.0358.2820.6233.36
vlseg4e16ff.v v8,(t0)30.6754.73102.5430.4254.58102.61198.6530.4654.44102.5630.5654.47
vlseg4e16ff.v v8,(t0),v0.t33.5258.60109.0033.4158.62108.84210.3233.1358.70109.0232.9358.86
vlseg4e32ff.v v8,(t0)54.41103.0054.59102.6554.75102.90198.9554.50102.53
vlseg4e32ff.v v8,(t0),v0.t58.11107.7657.94108.2658.05108.36208.0957.87108.56
vlseg4e64ff.v v8,(t0)102.45102.32102.32102.27198.61
vlseg4e64ff.v v8,(t0),v0.t109.06108.93109.22109.27208.60
vlseg5e8ff.v v8,(t0)135.14215.25375.40695.73135.14215.25375.40135.14215.25135.14
vlseg5e8ff.v v8,(t0),v0.t153.89277.68525.111009.83154.75278.58525.19155.39278.66154.43
vlseg5e16ff.v v8,(t0)111.10191.27351.35111.11191.21351.38111.09191.22111.11
vlseg5e16ff.v v8,(t0),v0.t145.55267.57515.37145.49266.21509.38143.74268.01142.87
vlseg5e32ff.v v8,(t0)99.12179.2399.12179.1999.04179.2499.02
vlseg5e32ff.v v8,(t0),v0.t138.52257.85140.88261.42138.41261.89138.83
vlseg5e64ff.v v8,(t0)93.0693.0793.0793.05
vlseg5e64ff.v v8,(t0),v0.t132.62134.31132.30133.89
vlseg6e8ff.v v8,(t0)152.17248.25440.50824.89152.16248.25440.53152.16248.27152.17
vlseg6e8ff.v v8,(t0),v0.t178.36328.47623.201203.73178.58327.65622.72179.81328.10179.91
vlseg6e16ff.v v8,(t0)128.11224.25416.48128.12224.25416.47128.14224.25128.13
vlseg6e16ff.v v8,(t0),v0.t168.15316.01608.39167.56320.05615.81165.80317.50170.69
vlseg6e32ff.v v8,(t0)116.09212.24116.09212.24116.12212.25116.12
vlseg6e32ff.v v8,(t0),v0.t160.26308.12162.77307.22163.85312.15164.42
vlseg6e64ff.v v8,(t0)110.11110.09110.11110.09
vlseg6e64ff.v v8,(t0),v0.t159.88158.96158.18156.15
vlseg7e8ff.v v8,(t0)169.20281.26505.53954.01169.18281.25505.54169.20281.26169.19
vlseg7e8ff.v v8,(t0),v0.t202.55377.89724.901399.99203.84374.31724.36203.57376.59204.07
vlseg7e16ff.v v8,(t0)145.15257.25481.50145.15257.25481.53145.15257.27145.16
vlseg7e16ff.v v8,(t0),v0.t192.75366.60706.14193.18365.30705.54193.98362.48194.60
vlseg7e32ff.v v8,(t0)133.14245.25133.15245.27133.13245.26133.13
vlseg7e32ff.v v8,(t0),v0.t185.35353.70186.26360.68184.40355.03189.36
vlseg7e64ff.v v8,(t0)127.14127.13127.12127.13
vlseg7e64ff.v v8,(t0),v0.t182.28183.63181.75183.24
vlseg8e8ff.v v8,(t0)186.19314.31570.611083.17186.21314.34570.56186.21314.28186.24
vlseg8e8ff.v v8,(t0),v0.t228.32421.81811.891595.63227.06429.29820.61229.68425.04227.97
vlseg8e16ff.v v8,(t0)162.19290.26546.55162.20290.28546.59162.18290.27162.17
vlseg8e16ff.v v8,(t0),v0.t218.89409.14803.22216.75417.21811.17218.61419.99217.79
vlseg8e32ff.v v8,(t0)150.16278.26150.16278.27150.15278.26150.14
vlseg8e32ff.v v8,(t0),v0.t213.92409.22211.30413.40210.97407.61211.30
vlseg8e64ff.v v8,(t0)144.15144.16144.15144.20
vlseg8e64ff.v v8,(t0),v0.t206.05208.41204.88210.64
vlsseg2e8.v v8,(t2),t321.8742.0184.08168.22336.35672.7621.8742.0084.12168.21336.3621.8742.0084.09168.2021.8742.0084.03
vlsseg2e8.v v8,(t2),t3,v0.t31.9461.16117.10229.78460.56921.8532.4760.15116.84229.74462.7132.3859.91116.32229.1832.4459.61116.82
vlsseg2e8.v v8,(t2),x020.8740.0180.09160.22320.33640.6720.8740.0180.04160.17320.3520.8740.0080.10160.1920.8740.0180.07
vlsseg2e8.v v8,(t2),x0,v0.t30.7157.37110.22219.11436.76878.5631.0057.33110.02218.57436.9431.5556.75110.66218.7331.0556.83110.50
vlsseg2e8.v v8,(t2),t1/*-1*/21.8742.0184.03168.19336.32672.7121.8742.0384.03168.20336.3121.8742.0084.02168.1621.8742.0084.03
vlsseg2e8.v v8,(t2),t1/*-1*/,v0.t32.1660.41117.28229.64459.42924.7732.6760.26115.90230.36463.3332.9460.28117.12231.5032.1760.77116.70
vlsseg2e16.v v8,(t2),t326.0052.00104.0826.0052.00104.10208.25416.4626.0052.01104.08208.2426.0052.01104.09
vlsseg2e16.v v8,(t2),t3,v0.t35.9268.32133.6135.9668.80132.50261.58528.7535.8868.76134.22263.0335.9468.77133.62
vlsseg2e16.v v8,(t2),x024.0148.0096.1224.0048.0196.06192.21384.4424.0048.0296.06192.2624.0048.0596.06
vlsseg2e16.v v8,(t2),x0,v0.t32.2761.97120.8233.2762.66120.51238.58478.7932.7162.37120.93239.3033.0262.15121.80
vlsseg2e16.v v8,(t2),t1/*-1*/26.0052.02104.0926.0052.02104.08208.25416.4826.0052.01104.09208.2526.0052.01104.09
vlsseg2e16.v v8,(t2),t1/*-1*/,v0.t35.6168.36132.5536.1168.56133.41262.44527.0135.8268.37133.96261.4935.6167.88134.10
vlsseg2e32.v v8,(t2),t336.0072.0436.0072.0336.0072.04144.16288.2836.0072.03144.17
vlsseg2e32.v v8,(t2),t3,v0.t43.4983.3643.4483.0443.1684.45164.84326.3343.1283.12165.07
vlsseg2e32.v v8,(t2),x032.0164.0832.0364.0332.0064.06128.15256.2932.0064.03128.14
vlsseg2e32.v v8,(t2),x0,v0.t37.5171.3137.6178.7637.3471.31149.25275.6440.7571.56140.14
vlsseg2e32.v v8,(t2),t1/*-1*/36.0072.0436.0072.0236.0072.03144.17288.3036.0072.04144.16
vlsseg2e32.v v8,(t2),t1/*-1*/,v0.t43.8583.2143.6883.9243.2483.51164.40326.9343.5183.41164.28
vlsseg2e64.v v8,(t2),t356.0356.0356.0356.03112.09224.26
vlsseg2e64.v v8,(t2),t3,v0.t59.8659.8559.6559.75115.90228.07
vlsseg2e64.v v8,(t2),x053.6650.4751.2252.03107.35227.43
vlsseg2e64.v v8,(t2),x0,v0.t60.2153.0753.1257.22104.96223.31
vlsseg2e64.v v8,(t2),t1/*-1*/56.0356.0356.0356.05112.10224.25
vlsseg2e64.v v8,(t2),t1/*-1*/,v0.t59.9959.8760.0059.85115.80228.09
vssseg2e8.v v8,(t2),t317.0034.0168.06136.24272.28544.8817.0734.0068.09136.25272.4117.0534.0068.07136.3317.0134.0068.07
vssseg2e8.v v8,(t2),t3,v0.t26.3352.62105.56209.05416.84834.8627.0253.98106.77209.53417.0226.7152.47105.36210.3025.9352.73104.62
vssseg2e8.v v8,(t2),x016.0032.0264.04128.11256.31512.5216.0032.0064.08128.13256.2516.0032.0064.06128.1516.0032.0264.04
vssseg2e8.v v8,(t2),x0,v0.t24.8649.6298.74196.91392.93784.7224.8749.5997.51196.70394.5325.0249.7397.81193.7125.5250.2898.58
vssseg2e8.v v8,(t2),t1/*-1*/17.3034.0568.07136.88273.07545.2317.1834.0268.21136.87273.1417.3134.0268.13136.7717.3134.0768.04
vssseg2e8.v v8,(t2),t1/*-1*/,v0.t26.7252.37105.02210.84416.42833.4426.5252.24105.21210.26420.5226.6252.26105.75209.1326.7352.82104.39
vssseg2e16.v v8,(t2),t318.9137.3474.8018.9037.4974.72149.71299.9219.0037.3374.76150.0118.9637.2674.96
vssseg2e16.v v8,(t2),t3,v0.t28.5555.08111.2127.9155.61111.00221.89443.2128.2056.11111.03220.8028.4555.99110.83
vssseg2e16.v v8,(t2),x016.0032.0264.0616.0032.0164.02128.10256.2416.0132.0064.04128.1816.0032.0164.07
vssseg2e16.v v8,(t2),x0,v0.t25.4649.5599.3825.1950.2197.83198.27392.5624.8449.33100.89196.2025.4849.4699.31
vssseg2e16.v v8,(t2),t1/*-1*/18.7036.6272.0718.6536.7172.63144.64288.4218.6336.7272.45144.2418.6836.7472.24
vssseg2e16.v v8,(t2),t1/*-1*/,v0.t28.4856.03110.6527.9255.86111.83220.63443.8328.0754.86110.63222.0327.8355.25111.84
vssseg2e32.v v8,(t2),t321.2442.4021.2042.0821.3042.3184.31168.5821.1642.1484.34
vssseg2e32.v v8,(t2),t3,v0.t31.3361.5431.6361.0531.4062.36123.36246.4731.5161.66122.58
vssseg2e32.v v8,(t2),x016.0032.0016.0032.0116.0032.0064.09128.1416.0036.9964.10
vssseg2e32.v v8,(t2),x0,v0.t25.7657.4225.4950.0224.6750.17103.54198.8425.7251.35101.12
vssseg2e32.v v8,(t2),t1/*-1*/20.1041.0320.0241.0220.0040.9581.19161.0920.0240.9781.07
vssseg2e32.v v8,(t2),t1/*-1*/,v0.t31.4462.0131.1961.9731.4262.48121.40245.1930.9560.89123.91
vssseg2e64.v v8,(t2),t325.6428.4124.0125.6452.82104.13
vssseg2e64.v v8,(t2),t3,v0.t39.3340.0438.0939.6578.98156.04
vssseg2e64.v v8,(t2),x024.9327.6224.9126.2655.70109.34
vssseg2e64.v v8,(t2),x0,v0.t33.4530.5737.8440.1560.23137.58
vssseg2e64.v v8,(t2),t1/*-1*/27.3625.5527.2225.3253.63117.07
vssseg2e64.v v8,(t2),t1/*-1*/,v0.t39.6340.4738.7039.0776.01154.86
vlsseg3e8.v v8,(t2),t324.0048.0296.10192.22384.4524.0048.0296.09192.2024.0048.0096.0724.0048.02
vlsseg3e8.v v8,(t2),t3,v0.t34.0666.63129.68256.12514.4434.0966.79128.90258.6833.6466.65130.9033.7765.47
vlsseg3e8.v v8,(t2),x022.0044.0288.07176.22352.3522.0044.0588.08176.2222.0044.0088.0822.0044.00
vlsseg3e8.v v8,(t2),x0,v0.t31.1759.76117.59233.41468.4631.4360.61118.18232.7431.2660.77118.6231.0260.61
vlsseg3e8.v v8,(t2),t1/*-1*/24.0048.0096.12192.18384.4924.0048.0096.12192.2324.0048.0096.0524.0048.01
vlsseg3e8.v v8,(t2),t1/*-1*/,v0.t34.1466.59130.41257.30514.5533.5465.76129.24260.3333.8965.57130.3434.0665.56
vlsseg3e16.v v8,(t2),t332.0064.01128.1432.0064.01128.14256.2532.0064.01128.1432.0064.02
vlsseg3e16.v v8,(t2),t3,v0.t41.2980.71161.2241.3180.69160.15319.1941.7781.16160.3141.7080.38
vlsseg3e16.v v8,(t2),x028.0556.07112.1128.0256.07112.12224.2528.0256.06112.0928.0256.03
vlsseg3e16.v v8,(t2),x0,v0.t36.1969.45137.1435.8168.62135.39269.9736.3570.08136.2935.5169.98
vlsseg3e16.v v8,(t2),t1/*-1*/32.0064.01128.1532.0064.06128.12256.2532.0064.03128.1332.0064.04
vlsseg3e16.v v8,(t2),t1/*-1*/,v0.t41.4581.31160.9841.5180.56161.17316.4641.0782.40161.0241.3681.40
vlsseg3e32.v v8,(t2),t348.0296.0848.0296.0948.0296.09192.2148.0096.06
vlsseg3e32.v v8,(t2),t3,v0.t56.64111.0856.39111.8556.64111.37221.4456.74111.82
vlsseg3e32.v v8,(t2),x044.8792.9150.4389.7144.8689.69169.8745.6583.31
vlsseg3e32.v v8,(t2),x0,v0.t54.7498.9949.04109.4149.77107.90218.8150.21100.65
vlsseg3e32.v v8,(t2),t1/*-1*/48.0296.0448.0196.0648.0196.04192.2548.0096.09
vlsseg3e32.v v8,(t2),t1/*-1*/,v0.t56.83111.5056.36111.7556.51111.66221.6256.50112.02
vlsseg3e64.v v8,(t2),t380.0480.0480.0680.06160.20
vlsseg3e64.v v8,(t2),t3,v0.t87.1987.2986.8486.86171.16
vlsseg3e64.v v8,(t2),x080.0380.0680.0680.05160.18
vlsseg3e64.v v8,(t2),x0,v0.t86.7387.0887.2287.27171.20
vlsseg3e64.v v8,(t2),t1/*-1*/80.0680.0480.0680.06160.20
vlsseg3e64.v v8,(t2),t1/*-1*/,v0.t87.1087.4087.4387.16171.24
vssseg3e8.v v8,(t2),t318.1637.0073.50146.66294.3118.0636.6873.42146.8818.0136.6773.2718.3136.91
vssseg3e8.v v8,(t2),t3,v0.t27.6456.19111.47220.55440.6527.8655.68110.79220.3728.1655.15110.6727.6155.16
vssseg3e8.v v8,(t2),x016.0032.0064.03128.15256.2716.0032.0064.03128.1316.0032.0164.0116.0032.02
vssseg3e8.v v8,(t2),x0,v0.t25.1748.91100.07194.81394.1024.6249.01100.28197.5525.3849.07100.3725.1650.34
vssseg3e8.v v8,(t2),t1/*-1*/18.5036.7372.65144.33288.4618.5636.5372.69144.3118.5036.7072.8018.6036.74
vssseg3e8.v v8,(t2),t1/*-1*/,v0.t28.0655.20111.16219.35440.6828.1854.88110.47219.5427.3856.18111.3027.8055.51
vssseg3e16.v v8,(t2),t321.3041.9583.8021.1341.3883.67167.6321.6441.4483.9021.4741.81
vssseg3e16.v v8,(t2),t3,v0.t30.9161.11123.1631.1061.56123.53248.2630.7962.45123.5230.6861.93
vssseg3e16.v v8,(t2),x016.0132.0364.1216.0032.0164.06128.2016.0032.0067.3016.0036.98
vssseg3e16.v v8,(t2),x0,v0.t25.3149.65104.3126.1950.0199.60198.6825.0649.98109.7425.1653.13
vssseg3e16.v v8,(t2),t1/*-1*/20.4340.2681.1320.5340.2081.18163.3720.3640.3981.2920.5040.21
vssseg3e16.v v8,(t2),t1/*-1*/,v0.t30.6160.94123.7730.6762.16123.21244.9131.3260.79123.6031.2061.83
vssseg3e32.v v8,(t2),t326.9653.9427.1154.6227.4354.97106.8627.4152.89
vssseg3e32.v v8,(t2),t3,v0.t37.8475.3737.1974.3738.0574.84149.4437.4974.43
vssseg3e32.v v8,(t2),x028.0956.5626.7253.1328.0754.82101.1227.6353.12
vssseg3e32.v v8,(t2),x0,v0.t29.4762.5131.3364.7836.6863.22120.6427.3361.02
vssseg3e32.v v8,(t2),t1/*-1*/27.3554.0627.3754.5326.8455.07107.6227.7054.83
vssseg3e32.v v8,(t2),t1/*-1*/,v0.t37.0474.7037.9474.8138.0274.19148.1937.8474.40
vssseg3e64.v v8,(t2),t346.8146.4046.0448.0088.88
vssseg3e64.v v8,(t2),t3,v0.t54.7553.4955.9055.78109.68
vssseg3e64.v v8,(t2),x042.0142.4541.6342.0488.15
vssseg3e64.v v8,(t2),x0,v0.t54.0153.2452.5853.63106.89
vssseg3e64.v v8,(t2),t1/*-1*/45.2747.6145.2545.2492.89
vssseg3e64.v v8,(t2),t1/*-1*/,v0.t56.2854.6556.1555.21108.30
vlsseg4e8.v v8,(t2),t327.0054.01108.09216.25432.4827.0054.02108.10216.2427.0054.01108.0927.0054.01
vlsseg4e8.v v8,(t2),t3,v0.t36.6971.86142.66287.72568.4536.7572.47140.93282.6736.4072.28143.2836.0471.95
vlsseg4e8.v v8,(t2),x024.0148.0496.06192.22384.5024.0148.0496.13192.1524.0048.0396.0424.0248.06
vlsseg4e8.v v8,(t2),x0,v0.t32.7764.11131.46247.89517.6132.5263.89124.70248.8532.7466.38125.4932.4362.91
vlsseg4e8.v v8,(t2),t1/*-1*/27.0054.00108.10216.25432.5427.0054.02108.11216.2527.0054.01108.1127.0054.02
vlsseg4e8.v v8,(t2),t1/*-1*/,v0.t36.6771.93142.45284.22570.3436.5972.31144.68285.0536.6272.61144.2236.6471.51
vlsseg4e16.v v8,(t2),t338.0076.06152.1738.0076.04152.18304.2938.0076.02152.1738.0076.04
vlsseg4e16.v v8,(t2),t3,v0.t47.5994.60188.4247.5095.02187.86372.6547.4793.97186.8547.4994.91
vlsseg4e16.v v8,(t2),x035.2268.89128.1533.6472.03134.58256.2732.0168.87144.1532.0664.07
vlsseg4e16.v v8,(t2),x0,v0.t39.5778.07151.3942.4791.98165.53301.8438.9476.66151.0341.3581.50
vlsseg4e16.v v8,(t2),t1/*-1*/38.0076.03152.1638.0076.04152.17304.3038.0076.03152.1638.0076.05
vlsseg4e16.v v8,(t2),t1/*-1*/,v0.t47.1993.66187.9547.5694.09187.36371.9347.6194.54188.0147.2593.75
vlsseg4e32.v v8,(t2),t360.02120.1160.03120.1260.02120.11240.2760.02120.11
vlsseg4e32.v v8,(t2),t3,v0.t69.79138.9870.13138.7469.47138.74276.4970.57138.61
vlsseg4e32.v v8,(t2),x055.24102.5353.64118.5456.03116.91214.6655.27116.92
vlsseg4e32.v v8,(t2),x0,v0.t64.82128.5065.00131.5059.57137.91264.5064.21119.60
vlsseg4e32.v v8,(t2),t1/*-1*/60.02120.1360.02120.1160.02120.12240.2660.02120.12
vlsseg4e32.v v8,(t2),t1/*-1*/,v0.t69.87138.7070.01139.7169.97138.37276.2169.74138.39
vlsseg4e64.v v8,(t2),t3104.08104.09104.09104.09208.24
vlsseg4e64.v v8,(t2),t3,v0.t113.51114.30114.22113.86226.69
vlsseg4e64.v v8,(t2),x0100.94100.02104.0999.35195.49
vlsseg4e64.v v8,(t2),x0,v0.t104.42107.87113.79108.28226.02
vlsseg4e64.v v8,(t2),t1/*-1*/104.09104.09104.08104.08208.25
vlsseg4e64.v v8,(t2),t1/*-1*/,v0.t113.99114.57114.03115.16226.61
vssseg4e8.v v8,(t2),t319.0239.2078.43156.97312.8019.0039.6577.91156.1319.0039.5078.6619.0039.20
vssseg4e8.v v8,(t2),t3,v0.t29.8957.98115.78231.14464.7929.1657.83115.59231.7130.1858.91117.9929.6258.82
vssseg4e8.v v8,(t2),x016.0033.7064.03128.16256.2716.0032.0164.07128.1716.0232.0067.3816.0032.02
vssseg4e8.v v8,(t2),x0,v0.t25.3649.30100.07198.37396.9925.1750.0698.71196.6125.7450.2998.6625.3550.45
vssseg4e8.v v8,(t2),t1/*-1*/20.0038.4476.62153.52307.5720.0038.0676.64153.6520.0038.1876.8219.9538.05
vssseg4e8.v v8,(t2),t1/*-1*/,v0.t29.1757.67116.93233.58468.0429.2058.70116.17233.6529.1157.86115.3829.0558.72
vssseg4e16.v v8,(t2),t322.4744.2588.5822.0044.3688.73176.5822.3744.3788.6022.0944.52
vssseg4e16.v v8,(t2),t3,v0.t34.3769.98134.8634.4367.09135.58271.1134.0968.14135.5933.2268.58
vssseg4e16.v v8,(t2),x018.7736.0292.0621.0236.0677.78149.8318.7538.9372.0919.5236.03
vssseg4e16.v v8,(t2),x0,v0.t28.7653.53120.1029.6750.56123.77200.9626.4750.09100.4730.5254.92
vssseg4e16.v v8,(t2),t1/*-1*/24.3247.7696.1924.3147.3895.83190.7424.1548.8195.6723.8948.17
vssseg4e16.v v8,(t2),t1/*-1*/,v0.t34.0367.43136.1734.5168.56135.45272.7335.0168.31134.5133.8368.69
vssseg4e32.v v8,(t2),t332.0064.0232.0064.0032.0164.07128.1632.0064.02
vssseg4e32.v v8,(t2),t3,v0.t43.8586.5943.9986.9144.5187.27177.5144.5589.38
vssseg4e32.v v8,(t2),x030.0456.4928.9358.8731.8258.85132.1630.0156.45
vssseg4e32.v v8,(t2),x0,v0.t38.6075.7536.4781.6138.4776.92152.3140.2484.51
vssseg4e32.v v8,(t2),t1/*-1*/32.0564.9932.0065.0332.0165.29130.7632.0264.72
vssseg4e32.v v8,(t2),t1/*-1*/,v0.t44.9287.8544.1388.9244.3988.52176.8444.1088.83
vssseg4e64.v v8,(t2),t351.4551.4351.8451.07101.90
vssseg4e64.v v8,(t2),t3,v0.t66.2965.1966.2764.88130.64
vssseg4e64.v v8,(t2),x052.0549.3753.3651.63101.97
vssseg4e64.v v8,(t2),x0,v0.t63.3964.3661.8062.70133.82
vssseg4e64.v v8,(t2),t1/*-1*/50.2950.3248.9848.96101.25
vssseg4e64.v v8,(t2),t1/*-1*/,v0.t65.3365.8266.3467.20129.35
vlsseg5e8.v v8,(t2),t384.09164.19324.33644.6684.03164.20324.3284.04164.1884.09
vlsseg5e8.v v8,(t2),t3,v0.t123.90244.88496.42975.30124.16244.96491.58124.08245.96124.69
vlsseg5e8.v v8,(t2),x084.09164.18324.32644.7384.08164.20324.3884.10164.1884.03
vlsseg5e8.v v8,(t2),x0,v0.t122.71247.50488.97977.41123.10245.78494.54124.48242.81125.36
vlsseg5e8.v v8,(t2),t1/*-1*/84.08164.20324.33644.7184.03164.20324.3284.03164.1984.09
vlsseg5e8.v v8,(t2),t1/*-1*/,v0.t122.54245.82493.34972.94123.09244.49495.88124.58246.59124.55
vlsseg5e16.v v8,(t2),t384.03164.22324.3584.03164.20324.3284.04164.1884.04
vlsseg5e16.v v8,(t2),t3,v0.t124.14240.97489.30123.51245.31487.59123.95245.02124.48
vlsseg5e16.v v8,(t2),x084.09164.18324.3084.04164.19324.3384.05164.1984.10
vlsseg5e16.v v8,(t2),x0,v0.t120.63246.80493.52122.14244.73490.26123.27246.28123.43
vlsseg5e16.v v8,(t2),t1/*-1*/84.03164.20324.3384.02164.20324.3384.03164.1884.03
vlsseg5e16.v v8,(t2),t1/*-1*/,v0.t122.77247.66488.16124.17250.73488.05124.11249.66124.63
vlsseg5e32.v v8,(t2),t384.04164.2084.09164.1784.05164.2084.11
vlsseg5e32.v v8,(t2),t3,v0.t122.92244.17124.97245.83125.00242.96122.38
vlsseg5e32.v v8,(t2),x084.04164.1784.09164.1984.04164.1884.04
vlsseg5e32.v v8,(t2),x0,v0.t122.66245.50123.87245.47122.56244.56124.62
vlsseg5e32.v v8,(t2),t1/*-1*/84.02164.1984.03164.2084.08164.1884.03
vlsseg5e32.v v8,(t2),t1/*-1*/,v0.t125.11246.45123.08246.79122.59243.34121.89
vlsseg5e64.v v8,(t2),t384.0884.0984.0984.08
vlsseg5e64.v v8,(t2),t3,v0.t121.45121.86123.19122.63
vlsseg5e64.v v8,(t2),x084.0484.0384.0384.03
vlsseg5e64.v v8,(t2),x0,v0.t124.32123.59123.41123.40
vlsseg5e64.v v8,(t2),t1/*-1*/84.0484.0384.0384.05
vlsseg5e64.v v8,(t2),t1/*-1*/,v0.t121.99123.17122.38123.33
vssseg5e8.v v8,(t2),t384.14164.18325.20645.3684.03164.29325.3484.04164.3284.07
vssseg5e8.v v8,(t2),t3,v0.t120.88246.44495.02979.29121.16249.12488.01124.35245.04124.22
vssseg5e8.v v8,(t2),x084.06164.20324.31644.7584.09164.18324.3284.09164.1984.06
vssseg5e8.v v8,(t2),x0,v0.t124.75241.76489.14979.45122.49241.25495.99126.28242.81123.97
vssseg5e8.v v8,(t2),t1/*-1*/86.08166.07327.46650.7386.76166.33327.3986.53166.3486.08
vssseg5e8.v v8,(t2),t1/*-1*/,v0.t124.19246.62495.28980.24123.58247.00494.03124.29245.72122.81
vssseg5e16.v v8,(t2),t384.16165.94327.5084.10165.65327.7284.23165.6684.15
vssseg5e16.v v8,(t2),t3,v0.t123.46240.78495.57122.27246.54494.34121.87245.87122.08
vssseg5e16.v v8,(t2),x084.06164.20324.3984.11164.23324.4084.23164.1884.08
vssseg5e16.v v8,(t2),x0,v0.t122.49248.89491.02125.87247.76487.75123.52249.34124.10
vssseg5e16.v v8,(t2),t1/*-1*/87.05166.55329.4186.91166.51329.3586.96166.7786.94
vssseg5e16.v v8,(t2),t1/*-1*/,v0.t122.20244.29485.12122.94245.17489.51123.71243.04124.11
vssseg5e32.v v8,(t2),t384.90164.5684.69164.6484.74164.7684.62
vssseg5e32.v v8,(t2),t3,v0.t125.22249.21122.67246.46124.01246.01123.66
vssseg5e32.v v8,(t2),x084.06164.2084.05164.2284.10164.2184.12
vssseg5e32.v v8,(t2),x0,v0.t122.54247.96123.98244.02122.31246.96122.34
vssseg5e32.v v8,(t2),t1/*-1*/87.07170.2387.10170.1887.11170.3787.09
vssseg5e32.v v8,(t2),t1/*-1*/,v0.t123.66246.67125.35247.02124.00245.34125.34
vssseg5e64.v v8,(t2),t384.0484.1884.2984.22
vssseg5e64.v v8,(t2),t3,v0.t122.27123.89123.25121.63
vssseg5e64.v v8,(t2),x084.1084.7584.0784.36
vssseg5e64.v v8,(t2),x0,v0.t125.67122.61123.34121.43
vssseg5e64.v v8,(t2),t1/*-1*/89.0989.0689.1189.05
vssseg5e64.v v8,(t2),t1/*-1*/,v0.t123.95125.16123.68125.68
vlsseg6e8.v v8,(t2),t3101.09197.25389.48773.85101.07197.28389.47101.08197.07101.09
vlsseg6e8.v v8,(t2),t3,v0.t147.65290.69589.521177.43148.01294.54592.70146.80292.56149.53
vlsseg6e8.v v8,(t2),x0101.08197.25389.47773.87101.08197.25389.47101.07197.04101.09
vlsseg6e8.v v8,(t2),x0,v0.t148.61295.41584.071176.97147.66296.41593.97147.36296.10149.15
vlsseg6e8.v v8,(t2),t1/*-1*/101.08197.26389.34773.81101.08197.25389.55101.07197.26101.09
vlsseg6e8.v v8,(t2),t1/*-1*/,v0.t145.91297.19587.571177.55147.94290.37589.77145.32291.71149.50
vlsseg6e16.v v8,(t2),t3101.07197.27389.40101.08197.00389.27101.09197.26101.07
vlsseg6e16.v v8,(t2),t3,v0.t149.79294.57590.09148.32298.71584.03147.96294.18146.68
vlsseg6e16.v v8,(t2),x0101.09197.13389.29101.10197.25389.39101.08197.25101.09
vlsseg6e16.v v8,(t2),x0,v0.t147.37290.57581.81147.72295.38593.64149.12292.90149.47
vlsseg6e16.v v8,(t2),t1/*-1*/101.07197.03389.26101.10197.26389.38101.09197.25101.07
vlsseg6e16.v v8,(t2),t1/*-1*/,v0.t147.83298.41589.99146.26292.85594.03145.50293.13149.17
vlsseg6e32.v v8,(t2),t3101.09197.25101.08197.06101.08197.26101.10
vlsseg6e32.v v8,(t2),t3,v0.t147.28294.26147.96299.00148.60292.72150.46
vlsseg6e32.v v8,(t2),x0101.08197.26101.09197.25101.07197.03101.08
vlsseg6e32.v v8,(t2),x0,v0.t147.95293.97149.52294.56149.06295.81147.89
vlsseg6e32.v v8,(t2),t1/*-1*/101.08197.25101.08197.25101.09197.00101.08
vlsseg6e32.v v8,(t2),t1/*-1*/,v0.t150.10293.03144.96297.27147.53292.40149.42
vlsseg6e64.v v8,(t2),t3101.08101.09101.08101.08
vlsseg6e64.v v8,(t2),t3,v0.t147.27148.29147.99147.70
vlsseg6e64.v v8,(t2),x0101.07101.09101.08101.09
vlsseg6e64.v v8,(t2),x0,v0.t148.36148.35147.39149.06
vlsseg6e64.v v8,(t2),t1/*-1*/101.09101.08101.08101.08
vlsseg6e64.v v8,(t2),t1/*-1*/,v0.t150.35147.02144.94148.07
vssseg6e8.v v8,(t2),t3101.10197.28390.23776.42101.09197.26390.07101.07197.28101.13
vssseg6e8.v v8,(t2),t3,v0.t144.08296.20582.461175.79146.92294.88591.66148.25294.18145.57
vssseg6e8.v v8,(t2),x0101.08197.24389.30773.89101.09197.24389.26101.09197.25101.08
vssseg6e8.v v8,(t2),x0,v0.t145.90294.04588.651172.08144.83293.94580.33146.45294.44148.04
vssseg6e8.v v8,(t2),t1/*-1*/101.11197.22389.29778.82101.12197.26389.44101.09197.24101.10
vssseg6e8.v v8,(t2),t1/*-1*/,v0.t146.56296.02589.851165.60150.77295.48587.22148.62297.36145.02
vssseg6e16.v v8,(t2),t3101.12197.25389.49101.09197.24389.42101.08197.00101.10
vssseg6e16.v v8,(t2),t3,v0.t146.72288.30589.78147.74297.61586.50148.90293.40147.26
vssseg6e16.v v8,(t2),x0101.11197.27389.52101.15197.17389.31101.09197.25101.15
vssseg6e16.v v8,(t2),x0,v0.t148.81299.57592.27147.01295.78592.69147.34293.48150.00
vssseg6e16.v v8,(t2),t1/*-1*/101.13197.26394.34101.11197.25394.39101.09197.26101.08
vssseg6e16.v v8,(t2),t1/*-1*/,v0.t148.68294.26587.43145.63298.35583.67147.10293.60149.45
vssseg6e32.v v8,(t2),t3101.28199.59101.59199.77101.41199.80101.58
vssseg6e32.v v8,(t2),t3,v0.t150.07295.68147.67295.93146.99291.88146.23
vssseg6e32.v v8,(t2),x0101.18197.29101.10197.23103.02197.27101.11
vssseg6e32.v v8,(t2),x0,v0.t147.43296.15148.01295.03149.70294.80148.62
vssseg6e32.v v8,(t2),t1/*-1*/101.09202.23101.11202.22101.12202.23101.31
vssseg6e32.v v8,(t2),t1/*-1*/,v0.t147.85294.29148.01297.05145.89292.07148.04
vssseg6e64.v v8,(t2),t3101.08101.08101.08101.08
vssseg6e64.v v8,(t2),t3,v0.t147.99148.86144.99147.22
vssseg6e64.v v8,(t2),x0101.16102.42102.49103.13
vssseg6e64.v v8,(t2),x0,v0.t151.20149.14148.83149.95
vssseg6e64.v v8,(t2),t1/*-1*/106.09106.08106.02106.08
vssseg6e64.v v8,(t2),t1/*-1*/,v0.t149.74148.60146.20149.80
vlsseg7e8.v v8,(t2),t3118.08230.26454.49903.00118.08230.25454.49118.09230.25118.08
vlsseg7e8.v v8,(t2),t3,v0.t170.08343.56686.301366.55172.21339.85684.78169.31343.90172.86
vlsseg7e8.v v8,(t2),x0118.08230.25454.51903.04118.08230.25454.49118.12230.25118.11
vlsseg7e8.v v8,(t2),x0,v0.t171.84338.40687.681372.78172.21342.59690.81172.56344.79170.38
vlsseg7e8.v v8,(t2),t1/*-1*/118.15230.26454.54903.02118.11230.25454.50118.18230.28118.15
vlsseg7e8.v v8,(t2),t1/*-1*/,v0.t169.50343.92691.911370.60172.63345.27690.11174.65346.78171.20
vlsseg7e16.v v8,(t2),t3118.08230.25454.50118.14230.24454.49118.11230.25118.14
vlsseg7e16.v v8,(t2),t3,v0.t173.64344.52692.25173.66343.52683.41171.49345.03170.13
vlsseg7e16.v v8,(t2),x0118.16230.25454.50118.11230.25454.50118.07230.26118.08
vlsseg7e16.v v8,(t2),x0,v0.t175.62344.25688.42172.44346.61688.77174.66348.42171.43
vlsseg7e16.v v8,(t2),t1/*-1*/118.12230.25454.50118.08230.26454.53118.08230.26118.08
vlsseg7e16.v v8,(t2),t1/*-1*/,v0.t173.60339.98683.84172.60347.48685.66170.82345.65170.40
vlsseg7e32.v v8,(t2),t3118.08230.24118.08230.26118.12230.27118.15
vlsseg7e32.v v8,(t2),t3,v0.t171.99343.79174.56343.87172.87342.02174.54
vlsseg7e32.v v8,(t2),x0118.14230.28118.15230.26118.14230.25118.12
vlsseg7e32.v v8,(t2),x0,v0.t169.12345.58174.28349.35171.48346.45171.06
vlsseg7e32.v v8,(t2),t1/*-1*/118.09230.25118.08230.25118.07230.25118.08
vlsseg7e32.v v8,(t2),t1/*-1*/,v0.t173.18346.28174.69339.08173.23343.26171.58
vlsseg7e64.v v8,(t2),t3118.12118.07118.14118.12
vlsseg7e64.v v8,(t2),t3,v0.t173.70174.68172.17172.87
vlsseg7e64.v v8,(t2),x0118.08118.16118.09118.13
vlsseg7e64.v v8,(t2),x0,v0.t172.93171.20170.02174.39
vlsseg7e64.v v8,(t2),t1/*-1*/118.08118.12118.13118.08
vlsseg7e64.v v8,(t2),t1/*-1*/,v0.t172.66172.08169.43172.84
vssseg7e8.v v8,(t2),t3118.17230.33455.57907.11118.12230.44455.21118.13230.42118.15
vssseg7e8.v v8,(t2),t3,v0.t174.73346.24679.481366.11171.96344.02685.16173.85346.34171.20
vssseg7e8.v v8,(t2),x0118.10230.26454.50902.95118.12230.25454.52118.08230.25118.09
vssseg7e8.v v8,(t2),x0,v0.t171.16348.77689.401371.24170.81349.91690.09173.30344.63172.43
vssseg7e8.v v8,(t2),t1/*-1*/118.12230.79454.77904.65118.16230.79454.64118.08230.74118.22
vssseg7e8.v v8,(t2),t1/*-1*/,v0.t172.42340.47682.151369.42170.69348.31691.93174.29344.18171.90
vssseg7e16.v v8,(t2),t3118.16231.31457.77118.16231.41457.60118.18231.31118.18
vssseg7e16.v v8,(t2),t3,v0.t172.61339.63685.72170.49347.45692.00173.32348.96172.63
vssseg7e16.v v8,(t2),x0118.15230.24454.50118.10230.27454.50118.08230.24118.08
vssseg7e16.v v8,(t2),x0,v0.t171.55348.79690.53173.85344.58677.72171.83343.23172.50
vssseg7e16.v v8,(t2),t1/*-1*/118.13230.82455.77118.22230.93455.80118.29230.86118.34
vssseg7e16.v v8,(t2),t1/*-1*/,v0.t174.42342.94684.60174.49343.41686.58174.00345.16172.77
vssseg7e32.v v8,(t2),t3118.18231.43118.43231.42118.32231.58118.30
vssseg7e32.v v8,(t2),t3,v0.t175.43342.10169.46347.51172.36341.60174.67
vssseg7e32.v v8,(t2),x0118.17230.25118.14230.25118.12230.25118.09
vssseg7e32.v v8,(t2),x0,v0.t172.22349.07174.41343.59173.54342.55172.93
vssseg7e32.v v8,(t2),t1/*-1*/118.47232.24118.17232.25118.42232.25118.20
vssseg7e32.v v8,(t2),t1/*-1*/,v0.t171.68338.69172.74342.38171.76344.44170.81
vssseg7e64.v v8,(t2),t3120.76120.25120.42120.22
vssseg7e64.v v8,(t2),t3,v0.t172.52174.04168.41174.94
vssseg7e64.v v8,(t2),x0118.12118.13118.08118.13
vssseg7e64.v v8,(t2),x0,v0.t174.71173.14174.48169.83
vssseg7e64.v v8,(t2),t1/*-1*/118.91118.97118.95118.78
vssseg7e64.v v8,(t2),t1/*-1*/,v0.t172.47171.93171.68171.01
vlsseg8e8.v v8,(t2),t3135.14263.25519.521032.12135.15263.26519.49135.14263.25135.14
vlsseg8e8.v v8,(t2),t3,v0.t194.76392.17788.161556.60196.16392.02789.81195.20392.58198.01
vlsseg8e8.v v8,(t2),x0135.16263.28519.541032.08135.14263.29519.58135.15263.26135.14
vlsseg8e8.v v8,(t2),x0,v0.t196.37383.38781.381563.82195.17391.31784.38196.91393.75197.21
vlsseg8e8.v v8,(t2),t1/*-1*/135.15263.25519.511032.14135.14263.25519.51135.13263.26135.13
vlsseg8e8.v v8,(t2),t1/*-1*/,v0.t197.51388.11786.431562.06196.61398.28790.14199.18395.03198.32
vlsseg8e16.v v8,(t2),t3135.15263.24519.52135.15263.25519.53135.15263.28135.14
vlsseg8e16.v v8,(t2),t3,v0.t199.73388.41783.32196.71394.59784.62196.35400.19197.95
vlsseg8e16.v v8,(t2),x0135.14263.25519.57135.15263.27519.52135.13263.26135.13
vlsseg8e16.v v8,(t2),x0,v0.t197.84390.29790.51197.68389.58786.13199.93393.95196.77
vlsseg8e16.v v8,(t2),t1/*-1*/135.15263.24519.53135.14263.25519.51135.16263.27135.15
vlsseg8e16.v v8,(t2),t1/*-1*/,v0.t194.61389.72782.46194.58390.50791.71199.16391.96197.41
vlsseg8e32.v v8,(t2),t3135.14263.26135.14263.28135.14263.26135.14
vlsseg8e32.v v8,(t2),t3,v0.t196.83391.50197.09394.84194.28388.24197.13
vlsseg8e32.v v8,(t2),x0135.17263.26135.14263.25135.15263.25135.15
vlsseg8e32.v v8,(t2),x0,v0.t196.00396.10195.59387.36197.22391.48198.71
vlsseg8e32.v v8,(t2),t1/*-1*/135.13263.26135.13263.25135.13263.29135.14
vlsseg8e32.v v8,(t2),t1/*-1*/,v0.t197.52394.13199.10385.82195.25396.58194.66
vlsseg8e64.v v8,(t2),t3135.15135.15135.14135.15
vlsseg8e64.v v8,(t2),t3,v0.t196.84201.84194.31198.02
vlsseg8e64.v v8,(t2),x0135.15135.13135.13135.13
vlsseg8e64.v v8,(t2),x0,v0.t194.04193.43194.74197.58
vlsseg8e64.v v8,(t2),t1/*-1*/135.15135.15135.14135.15
vlsseg8e64.v v8,(t2),t1/*-1*/,v0.t192.80195.71196.21197.57
vssseg8e8.v v8,(t2),t3135.14263.32519.931033.48135.15263.32519.69135.18263.38135.21
vssseg8e8.v v8,(t2),t3,v0.t196.77392.26786.751557.10194.41399.41785.50197.76394.95194.73
vssseg8e8.v v8,(t2),x0135.25263.25519.531032.17135.15263.26519.53135.14263.26135.14
vssseg8e8.v v8,(t2),x0,v0.t197.50394.52794.631562.34200.88395.30778.44197.15397.79198.15
vssseg8e8.v v8,(t2),t1/*-1*/135.34263.36520.111032.49135.30263.35519.94135.31263.43135.21
vssseg8e8.v v8,(t2),t1/*-1*/,v0.t198.87387.30783.841558.16196.90395.36786.67197.55388.21201.05
vssseg8e16.v v8,(t2),t3135.29264.25520.65135.22264.26520.57135.24264.26135.26
vssseg8e16.v v8,(t2),t3,v0.t197.97392.82790.69195.73389.67788.33196.77394.82198.37
vssseg8e16.v v8,(t2),x0135.16263.30519.58135.17263.25519.54135.14263.29135.17
vssseg8e16.v v8,(t2),x0,v0.t197.20393.16784.16195.93395.41783.41196.74393.00199.61
vssseg8e16.v v8,(t2),t1/*-1*/135.19263.46519.84135.31263.35519.64135.18263.52135.31
vssseg8e16.v v8,(t2),t1/*-1*/,v0.t197.73395.09776.66196.77399.93794.90196.38396.31196.02
vssseg8e32.v v8,(t2),t3135.94265.20135.75265.24136.09265.11136.13
vssseg8e32.v v8,(t2),t3,v0.t198.16396.11199.91387.93197.97392.58196.23
vssseg8e32.v v8,(t2),x0135.18263.29135.18263.28135.14263.30135.16
vssseg8e32.v v8,(t2),x0,v0.t197.77389.25197.73392.15194.78388.98195.74
vssseg8e32.v v8,(t2),t1/*-1*/135.36263.63135.28263.34135.38263.48135.31
vssseg8e32.v v8,(t2),t1/*-1*/,v0.t197.01394.16198.02397.21195.80393.01197.28
vssseg8e64.v v8,(t2),t3135.16135.15135.19135.16
vssseg8e64.v v8,(t2),t3,v0.t198.76197.61200.46199.71
vssseg8e64.v v8,(t2),x0135.62135.84137.01135.64
vssseg8e64.v v8,(t2),x0,v0.t196.07198.98197.87195.75
vssseg8e64.v v8,(t2),t1/*-1*/135.27135.23135.28135.16
vssseg8e64.v v8,(t2),t1/*-1*/,v0.t197.01195.44198.03197.08
vandn.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vandn.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vandn.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vandn.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vbrev.v v8,v161.002.004.008.0016.0032.0064.042.004.008.0016.0032.0064.024.008.0016.0032.0064.018.0016.0032.0064.02
vbrev.v v8,v16,v0.t1.002.004.008.0016.0032.0064.012.004.008.0016.0032.0064.014.008.0016.0032.0064.028.0016.0032.0064.06
vbrev8.v v8,v161.002.004.008.0016.0032.0064.022.004.008.0016.0032.0064.044.008.0016.0032.0064.048.0016.0032.0064.01
vbrev8.v v8,v16,v0.t1.002.004.008.0016.0032.0064.062.004.008.0016.0032.0064.024.008.0016.0032.0064.028.0016.0032.0064.01
vclz.v v8,v161.002.004.008.0016.0032.0064.012.004.008.0016.0032.0064.024.008.0016.0032.0064.028.0016.0032.0064.05
vclz.v v8,v16,v0.t1.002.004.008.0016.0032.0064.002.004.008.0016.0032.0064.044.008.0016.0032.0064.038.0016.0032.0064.02
vctz.v v8,v161.002.004.008.0016.0032.0064.052.004.008.0016.0032.0064.014.008.0016.0032.0064.018.0016.0032.0064.01
vctz.v v8,v16,v0.t1.002.004.008.0016.0032.0064.012.004.008.0016.0032.0064.004.008.0016.0032.0064.038.0016.0032.0064.04
vcpop.v v8,v161.002.004.008.0016.0032.0064.012.004.008.0016.0032.0064.024.008.0016.0032.0064.068.0016.0032.0064.04
vcpop.v v8,v16,v0.t1.002.004.008.0016.0032.0064.022.004.008.0016.0032.0064.054.008.0016.0032.0064.018.0016.0032.0064.02
vrol.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vrol.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vrol.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vrol.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vror.vv v8,v16,v241.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vror.vv v8,v16,v24,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vror.vx v8,v16,t01.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vror.vx v8,v16,t0,v0.t1.001.001.002.004.008.0016.001.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsll.vv v8,v16,v241.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsll.vv v8,v16,v24,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsll.vx v8,v16,t01.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00
vwsll.vx v8,v16,t0,v0.t1.001.002.004.008.0016.001.002.004.008.0016.002.004.008.0016.00

Below are measurements for the scalar instructions, obtained using the same methodology as above:

instructioncycles
add t0, s4, s50.51
addw t0, s4, s50.52
addi t0, s4, 130.52
addiw t0, s4, 130.51
sub t0, s4, s50.51
subw t0, s4, s50.52
lui t0, 130.50
auipc t0, 131.50
xor t0, s4, s50.51
xori t0, s4, 130.52
or t0, s4, s50.52
ori t0, s4, 130.51
and t0, s4, s50.51
andi t0, s4, 130.52
slt t0, s4, s50.52
slti t0, s4, 130.51
sltu t0, s4, s50.51
sltiu t0, s4, 130.52
sll t0, s4, s50.51
sllw t0, s4, s50.51
slli t0, s4, 130.52
slliw t0, s4, 130.52
srl t0, s4, s50.51
srlw t0, s4, s50.51
srli t0, s4, 130.52
srliw t0, s4, 130.52
sra t0, s4, s50.51
sraw t0, s4, s50.51
srai t0, s4, 130.52
sraiw t0, s4, 130.52
lb t0, 13(s1)1.00
lh t0, 13(s1)1.00
lw t0, 13(s1)1.00
ld t0, 13(s1)1.00
lbu t0, 13(s1)1.00
lhu t0, 13(s1)1.00
lwu t0, 13(s1)1.00
sb t0, 13(s1)1.00
sh t0, 13(s1)1.00
sw t0, 13(s1)1.00
sd t0, 13(s1)1.00
mul t0, s4, s53.00
mulh t0, s4, s54.00
mulhsu t0, s4, s54.00
mulhu t0, s4, s54.00
mulw t0, s4, s51.00
div t0, s4, s53.00
divw t0, s4, s53.00
divu t0, s4, s53.00
divuw t0, s4, s53.00
rem t0, s4, s53.00
remw t0, s4, s53.00
remu t0, s4, s53.00
remuw t0, s4, s53.00
lr.w t0, (s1)1.00
lr.d t0, (s1)1.00
sc.w t0, s4, (s1)1.04
sc.d t0, s4, (s1)1.04
amoswap.w t0, s4, (s1)13.00
amoswap.d t0, s4, (s1)13.00
amoadd.w t0, s4, (s1)13.00
amoadd.d t0, s4, (s1)13.00
amoxor.w t0, s4, (s1)13.00
amoxor.d t0, s4, (s1)13.00
amoand.w t0, s4, (s1)13.00
amoand.d t0, s4, (s1)13.00
amoor.w t0, s4, (s1)13.00
amoor.d t0, s4, (s1)13.00
amomin.w t0, s4, (s1)13.00
amomin.d t0, s4, (s1)13.00
amomax.w t0, s4, (s1)13.00
amomax.d t0, s4, (s1)13.00
amominu.w t0, s4, (s1)13.00
amominu.d t0, s4, (s1)13.00
amomaxu.w t0, s4, (s1)13.00
amomaxu.d t0, s4, (s1)13.00
fmv.w.x ft0, s41.00
fmv.x.w t0, fa11.00
fcvt.w.s t0, fa11.00
fcvt.wu.s t0, fa11.00
fcvt.s.w ft0, s40.51
fcvt.s.wu ft0, s40.52
fcvt.l.s t0, fa11.00
fcvt.lu.s t0, fa11.00
fcvt.s.l ft0, s40.51
fcvt.s.lu ft0, s40.52
flw ft0, 13(s1)1.00
fsw ft0, 13(s1)1.50
fadd.s ft0, fa1, fa20.51
fsub.s ft0, fa1, fa20.52
fmul.s ft0, fa1, fa20.52
fdiv.s ft0, fa1, fa29.00
fsqrt.s ft0, fa115.00
fmadd.s ft0, fa1, fa2, fa30.62
fmsub.s ft0, fa1, fa2, fa30.62
fnmsub.s ft0, fa1, fa2, fa30.62
fnmadd.s ft0, fa1, fa2, fa30.62
fsgnj.s ft0, fa1, fa21.00
fsgnjn.s ft0, fa1, fa21.00
fsgnjx.s ft0, fa1, fa21.00
fmin.s ft0, fa1, fa20.51
fmax.s ft0, fa1, fa20.52
feq.s t0, fa1, fa21.00
flt.s t0, fa1, fa21.00
fle.s t0, fa1, fa21.00
fclass.s t0, fa11.00
fmv.d.x ft0, s41.00
fmv.x.d t0, fa11.00
fcvt.w.d t0, fa11.00
fcvt.wu.d t0, fa11.00
fcvt.d.w ft0, s40.52
fcvt.d.wu ft0, s40.51
fcvt.l.d t0, fa11.00
fcvt.lu.d t0, fa11.00
fcvt.d.l ft0, s40.52
fcvt.d.lu ft0, s40.51
fld ft0, 13(s1)1.00
fsd ft0, 13(s1)1.50
fadd.d ft0, fa1, fa20.52
fsub.d ft0, fa1, fa20.51
fmul.d ft0, fa1, fa20.62
fdiv.d ft0, fa1, fa29.00
fsqrt.d ft0, fa16.00
fmadd.d ft0, fa1, fa2, fa30.75
fmsub.d ft0, fa1, fa2, fa30.75
fnmsub.d ft0, fa1, fa2, fa30.75
fnmadd.d ft0, fa1, fa2, fa30.75
fsgnj.d ft0, fa1, fa21.00
fsgnjn.d ft0, fa1, fa21.00
fsgnjx.d ft0, fa1, fa21.00
fmin.d ft0, fa1, fa20.52
fmax.d ft0, fa1, fa20.51
feq.d t0, fa1, fa21.00
flt.d t0, fa1, fa21.00
fle.d t0, fa1, fa21.00
fclass.d t0, fa11.00
add.uw t0, s4, s50.51
sh1add t0, s4, s50.52
sh1add.uw t0, s4, s50.52
sh2add t0, s4, s50.51
sh2add.uw t0, s4, s50.51
sh3add t0, s4, s50.52
sh3add.uw t0, s4, s50.52
slli.uw t0, s4, 130.51
zext.w t0, s40.51
andn t0, s4, s50.52
orn t0, s4, s50.52
xnor t0, s4, s50.51
clz t0, s40.51
clzw t0, s40.52
ctz t0, s40.52
ctzw t0, s40.51
cpop t0, s40.51
cpopw t0, s40.52
max t0, s4, s50.52
maxu t0, s4, s50.51
min t0, s4, s50.51
minu t0, s4, s50.52
sext.b t0, s40.52
sext.h t0, s40.51
zext.h t0, s40.51
rol t0, s4, s50.51
rolw t0, s4, s50.52
ror t0, s4, s50.52
rori t0, s4, 130.52
roriw t0, s4, 130.51
rorw t0, s4, s50.52
orc.b t0, s40.51
rev8 t0, s40.51
bclr t0, s4, s50.52
bclri t0, s4, 130.52
bext t0, s4, s50.51
bexti t0, s4, 130.51
binv t0, s4, s50.52
binvi t0, s4, 130.52
bset t0, s4, s50.51
bseti t0, s4, 130.51
